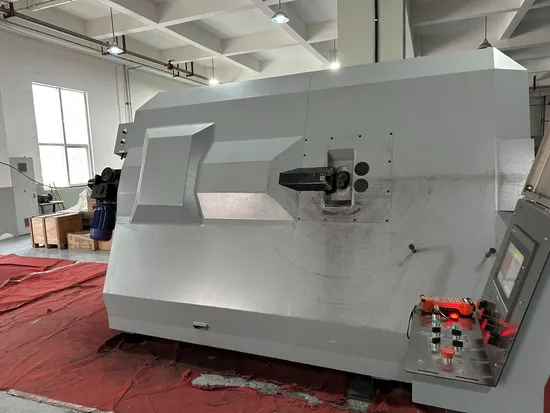

Factory Price Highly Efficiency Intelligent Wireless Remote Control Hoop Bending Machine

Product Description

Product introduction
1.Wireless remote control, convenient and safe operation, equipped with automatic feeding and wire feeding mechanism.
2.The curved steel bar straightening mechanism can prevent the threaded steel from axial torsion, double-line feeding, and single-line independent straightening, which can realize independent straightening without stopping the machine.
3.Servo control bending and wire feeding, can work 24 hours without interruption.
4.Intelligent fault identification, centralized oil supply and lubrication, prolong service life.
5.Human-machine interface interactive operation.
6.Cut off the support block, cut off the knife arm, made of special materials, effectively improve the service life.

YT-12 CNC Automatic Hoop Bending Machine
Model	YT-12	Angle tolerance	±1°
Single strand diameter(mm)	Φ6-Φ12	Elbow move up and down	with
Double strand diameter(mm)	Φ6-Φ10	Production capacity(single strand)	750pcs/h
Bending angle	1°-180°	Product capacity(double strand)	1500pcs/h
Max pulling speed	150m/min	Rated power	20kw
Length tolerance	±1mm	Equipment dimension(mm)	3000×1500×2000
Straightening system	S Arc Straightening system(our patented product)	Equipment weight	1700KG

YT-10 CNC Automatic Hoop Bending Machine
Model	YT-10	Angle tolerance	±1°
Single strand diameter(mm)	Φ5-Φ10	Elbow move up and down	with
Double strand diameter(mm)	Φ5-Φ8	Production capacity(single strand)	950pcs/h
Bending angle	1°-180°	Product capacity(double strand)	1900pcs/h
Max pulling speed	160m/min	Rated frequency	14kw
Length tolerance	±1mm	Equipment dimension(mm)	3032×1150×1780
Straightening system	Linear straightening system	Equipment weight	1700KG

---
