| US$47,250.00 | 1 Piece (MOQ) |

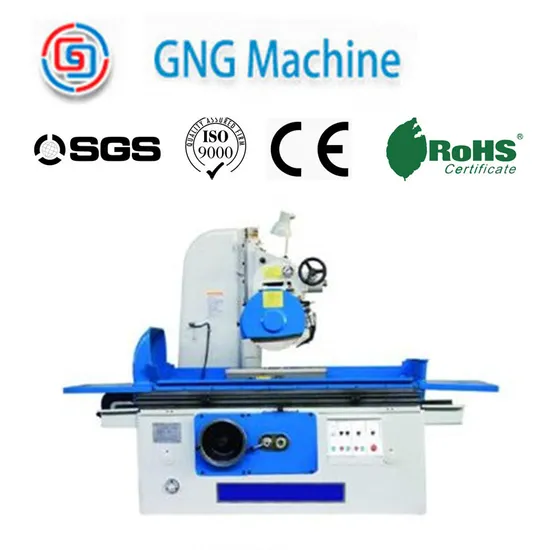

| M71 wheel head moving surface grinder | |||
| Item/Model | Unit | M7130Ax4500 | |
| table size(WxL) | mm | 300x4700 | |
| max. machining dimension(WxL) | mm | 300x4700 | |
| max. distance between spindle center line and worktable surface | mm | 525 | |
| longitudinal moving speed of worktable | m/min | 5-25 | |
| T-slot number x W | mm | 3x18 | |
| wheel head cross moving | continuous feed speed | m/min | 0.5-4.5 |
| intermittent feed speed | mm/t | 3-30 | |
| hand wheel feed | mm/gra | 0.02 | |
| wheel head vertical moving | rapid speed | mm/min | 400 |
| feed of handwheel | mm/gra | 0.005 | |
| wheel head motor | power | kw | 7.5 |
| rotation speed | rpm | 1440 | |
| total power | kw | 15.5 | |
| max. loading capacity of worktable with chuck | kg | 2100 | |
| chuck size (W x L) | mm | 300x1000 | |
| wheel size (ODxWxID) | mm | 400x40x127 | |
| machine dimension(LxWxH) | cm | 1220x170x203 | |
| package dimensions(LxWxH) | cm | 1250x220x213 | |
| machine weight | t | 12 | |
| *M7130AL with air cooling apparatus for hudraulic system of the machine to realize small increase of oil tank temperature. | |||
