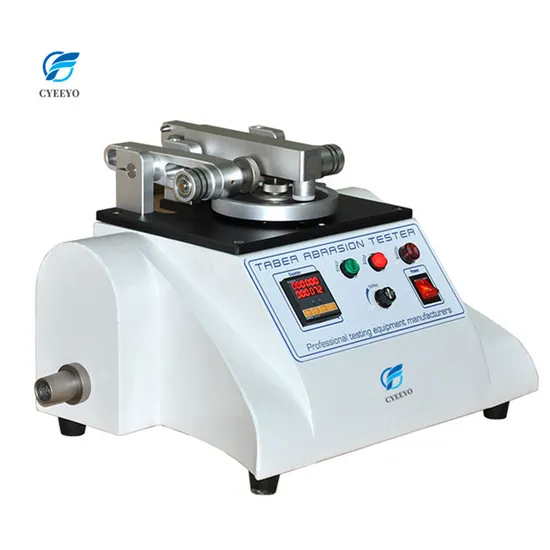

Taber Reciprocating Abrasion Abraser Tester and Reciprocating Wear Tester DIN52347

Product Description

Taber Reciprocating abrasion abraser tester and Reciprocating wear tester
Product Description

Application
Used for testing abrasion resistance of all fabrics, leathers, carpets, rubbers, plastic
sheets and other various materials.

Standard
ISO5470-1 ASTM D3884, DIN53863.2

Parameter

Working plate diameter	Φ115mm
Working plate speed of revolution	50--120r/min
Grinding wheel external dimension	diameter Φ50mm thickness 13mm
Counting range	0~999999 times
Loading pressure	Self-weight of pressing sleeve:250cN
weight	weight 1:750cN weight 2:250cN weight 3:125cN
sample max thickness	20mm
max power consumption	1400W
power	220V 50Hz
dimension	380×370×360(L×W×H)mm (without cleaner)
net weight	30Kg(without cleaner)

Application
Used for testing abrasion resistance of all fabrics, leathers, carpets, rubbers, plastic
sheets and other various materials.

Standard
ISO5470-1 ASTM D3884, DIN53863.2

Application
Used for testing abrasion resistance of all fabrics, leathers, carpets, rubbers, plastic
sheets and other various materials.

Standard
ISO5470-1 ASTM D3884, DIN53863.2

Application
Used for testing abrasion resistance of all fabrics, leathers, carpets, rubbers, plastic
sheets and other various materials.

Standard
ISO5470-1 ASTM D3884, DIN53863.2
Packaging & Shipping
Our Advantages
FAQ

---
