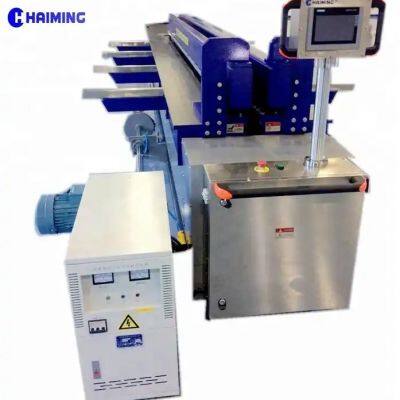

Big butt tube automatic welding machinery
Features:
1. S-PH3000A- J can be operated horizontally and circular , which allows to perform different types of weld (horizontal and circular). The machine is equipped with a control panel, which allows easily and safely setting and performance of the whole welding process.Otherwise according to the user’s needs, it is also possible to input the type of material and the dimension of the thermoplastic sheet, and therefore proceed to weld. Each welding cycle is automatically memorized.
2. Welding types: horizontal and circular (on request),S-PH3000A- J is a CNC automatic butt fusion machine, suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF….
3. The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
4. Control system Siemens PLC, 7-inch color touch screen.
5. Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
6. 3mm-40mm welding capabilities, special welding thickness of up to 60mm.
Range of Application:
Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics.
Technical Data:
Model
| S-PH3000A-J
| S-PH4000A-J
| S-PH6000A-J
|
Machine Length (mm)
| 4300
| 5300
| 7500
|
Machine Width (mm)
| 3800
| 3800
| 3800
|
Machine Height (mm)
| 1100
| 1150
| 1200
|
Poids total (kg)
| 3000
| 3800
| 6100
|
Air pressure
| 8,0 bar
| 8,0 bar
| 8,0 bar
|
Power supply standard
| 380
| 380
| 380
|
Heating element power(KW)
| 4
| 5
| 8
|
Reel motor power(KW)
| 3
| 3
| 4
|
The heating element size (mm)
| 3200 X 22 X 55
| 4200 X 22 X 55
| 6200 X 22 X 55
|
Welding materials
| PP PE PVDF...
| PP PE PVDF…
| PP PE PVDF…
|
Welding area lighting
| LED
| LED
| LED
|
weld thickness(mm)
| 3-30
| 3-30
| 3-30
|
Welding Length(mm)
| 3025
| 4025
| 6025
|
Minimum diameter of pipe(mm)
| 360
| 480
| 580
|
Our service:
1. Warranty for 12 months.
2. We accept OEM & ODM.
3. In some foreign countries, we have the distributor or agent to sell and warranty the machines, they will supply service
Why choose us?
1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology
2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than decade . And our factory have many skilful peration of workers and the stability of the scale of production. And we also have many outstanding engineers,they can help you design the machines you want.
3.Genuine products with excellent quality and competitive price.
4.Cooperating with the customers all over the world and knowing the markets very well.
5.After-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of time.
>>
