Recycle Plastic Granules Making Machine Price Plastic Granulating Machine

Product Description

Greenlandplast pelletizing line( noodle-cutting type) The Greenlandplast plastic pelletizing line is mainly used for the recycling granulation/pelletizing ofrigid regrind flakes material ,it can also be used for washing and drying regrindflakes , squeezed and compacted film materials and the semi-plasticized materialsafter agglomeration.By equipping with different feeding methods and pelletizingmethods, installating forced feeding system can also be used for pelletizing of filmcrushed scraps. lt can be suitable for recycling and pelletizing of various types andproperties material, such as PE, PE, ABS, PS , PC, PA, PVC and other materials.*The recycled plastic material are usually conveyed by screw feeder or beltconveyor into extrusion system, then the material are fed to the extruder screwbarrel through a quantitfy feeding device. The screw is specially designed for therecycled material recycling pelletizing , and has advantage of fast feeding&stableand resistance. With natural venting and vacuum system; can effectively dischargethe water inside the material; the extruder uses cast aluminum heaters or ceramicheater, durable.Customers aso may choose two-stage pelletizing system, use thetwo extruders pass the secondary filtration to make the pellets be cleaner andhigher quality
Product Parameters
Technical dates

Model	Screw Diameter	Motor power	Capacity
GLP100-100	100mm	55122kw	150-200kgh
GLP120-120	120mm	90/37kw	250-350kgh
GLP140-140	140mm	132/55kw	400-500kgh
GLP160-160	160mm	160/75kw	550-650kgh
GLP180-180	180mm	185/90kw	650-800kgh
GLP200-200	200mm	250/110kw	800-1000kgh

Quantificational feeder
Feed material into extruder smoothly and evenly First stage extruder
38crMoAl screw&barrel with nitriding treatment ,with vacuum exhaust system,with hydraulic screen changing system Vacuum degass system
Forced vacuum degassing system

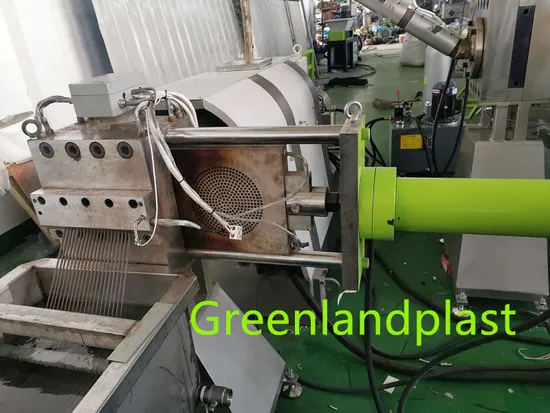

Water-strand cutting (noodle cutting)system
Suitable more type material ,for example ,ABS ,PS and high viscosity material
Blowing dryer
Vibrating &blowing drying method, stainless steel 304 material.
Pelletizing cutter&vibrator
Cutter inverter speed control ,Vibrator stainless steel 304 material.
Packaging & Shipping

---
