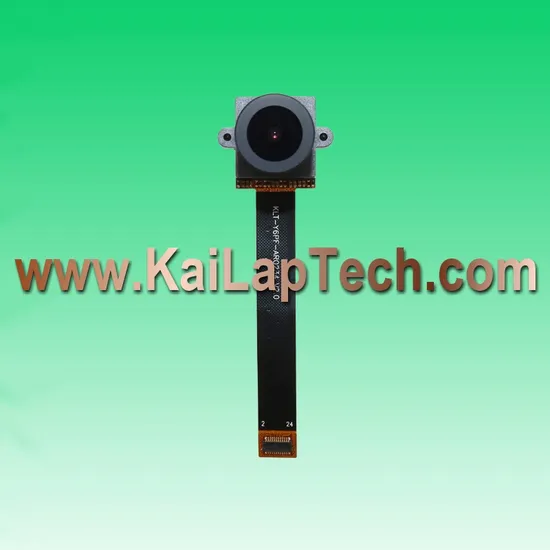

Klt-Y6PF-Ar0234 V2.0 WiFi Camera 2.3MP Ar0234 Global Shutter Dvp Parallel Interface M14 Fixed Focus Camera Module

US$55.00-60.00 100 Pieces (MOQ)

Basic Info.

Model NO.
KLT-Y6PF-AR0234 V2.0
Application
Fixed Focus
Interface Type
Dvp Parallel
Transport Package
Anti-Static Bag in Box
Specification
70.00 x 22.00 mm
Trademark
KLT
Origin
China
Production Capacity
500000 Pieces

Product Description

2.3MP AR0234 Global Shutter DVP Parallel Interface M14 Fixed Focus Camera Module
Camera Module No. KLT-Y6PF-AR0234 V2.0
Camera Module No.KLT-Y6PF-AR0234 V2.0
Resolution2.3MP
Image SensorAR0234 Global Shutter
Sensor Type1/2.6"
Pixel Size3.0 um x 3.0 um
EFL3.51 mm
F.NO2.70
Pixel1920 x 1200
View Angle127.0°(DFOV) 102.0°(HFOV) 60.0°(VFOV)
Lens Dimensions15.30 x 15.30 x 16.38 mm
Module Size70.00 x 22.00 mm
Module TypeFixed Focus
InterfaceDVP Parallel
Auto Focus VCM Driver ICNone
Lens ModelKLT-LENS-TRC-2004A1
Lens Type650nm IR Cut
Operating Temperature-30°C to +70°C
Mating ConnectorDF30FC-24DS-0.4V
