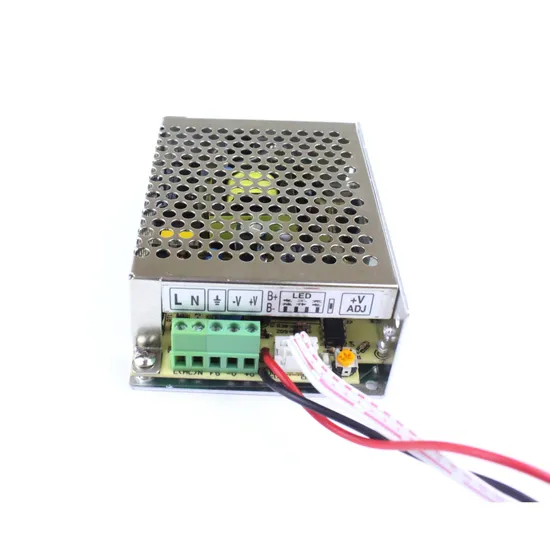

SMPS Fast Charging Function UPS 3000mA 50-60Hz AC 100-240V DC 12V Supply Battery 13.8V CCTV Camera UPS Switching Power Supply 40W 3A

Product Description

SMPS fast charging function UPS 3000ma 50-60hz ac 100-240v dc 12V supply battery 13.8v CCTV camera UPS switching power supply 40W 3A
Features:
1.Low power consumption, high reliability
2.Protections: Short circuit/Over load/Over voltage
3.Cooling by free air convection
4.100% full loading burn-in test
5. 2 years warranty
6.AC86-264V input

OUTPUT	CHARGE VOLTAGE	13.8V ±2%
	DC VOLTAGE	13.8V ±10%
	OUTPUT POWER	40W	60W	120W	180W	240W
	CURRENT RANGE	0-3A	0-4.5A	0-8.8A	0-13A	0-17.3A
	RIPPLE & NOISE( max.)	150mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	CONNECTION TERMINAL	DC+, DC-
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	110 ~ 264VAC or 110VAC/220VAC by switcher
	AC CURRENT(Typ.)	0.35A/ 226VAC 0.18A/ 240VAC
	CONNECTION TERMINAL	AC-L,AC-N
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	80%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC 30A/230VAC
	LEAKAGE CURRENT	<3.0mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0ºC ~ +45ºC (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP. HUMIDITY	-20ºC ~ +85ºC 10~95% RH
	TEMP. COEFFICIENT	±0.05%/ºC
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	SAFTY STANDARDS	CE EN60950-1 Approved
	WITHSTAND VOLTAGE	I/P-O/P:3.0KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	EMI CONDUCTION	Compliance to EN55022
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN55024
OTHERS	DIMENSION	110*78*36mm	130*98*38mm	160*98*42mm	199*110*50mm	199*110*50mm
	NET WEIGHT	0.27kg	0.35kg	0.47kg	0.75kg	0.75kg
	SHELL MATERIAL	Chassis:1.5mm thickness aluminium;Cover:0.7mm thickness iron(silver plating)
	CHARGE MANAGE	When the system put in storage batteries, electric power on ,charge the batteries, indicating red lights to displaying working and indicating green light to displaying charging batteries.When input power off, Auto switch to electric battery operated, indicating green light to the battery power state,red light work off.

MOQ-
No limited

Many power models-
5 Watts - 1800 Watts

Many voltage output-
5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).

New Design-
We have professional engineer to make new design as your speical requirment.

Good quality-
We have the best professional and experienced engineer and the strict QC system.

Fast delivery-
The delivery time is 1-25 days which depend on quantity and details items.

Payment term-
T/T, L/C, Paypal, Western Union, Money Gram.

Solutions-
With more than 10 years experience,we can provide professional design solution for power supply according your requirement.

Cooperation-
You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
