900/40 ACSR ASTM Aluminum Core Overhead Bare Conductor

Product Description

Product Description

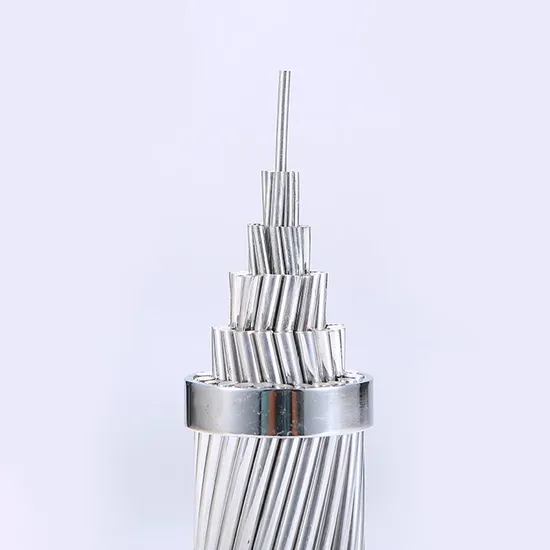

ACSR bare stranded aluminum conductor
Widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.
Execute Standards
(1). ASTM B 232/B 232M:Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)
(2). AS 3607:Conductors-Bare overhead, aluminium and aluminium alloy-Steel reinforced
(3). IEC 61089:Round wire concentric lay overhead electrical conductors
(4). DIN 48.204:Steel reinforced aluminium stranded conductor
(5). BS 215-2:Aluminium conductors and aluminium conductors, steel-reinforced-For overhead power transmission-Part 2:Aluminium conductors, steel-reinforced
(6). BS EN 50182:Conductors for overhead lines-Round wire concentric lay stranded conductors
(7). Production can be arranged according to customers requirements' for material standard, etc.
Bare Conductor Types
(1) all aluminum conductor (AAC)
(2) all aluminum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminum conductor aluminum clad steel reinforced(ACSR/AW)
(6)rear earth aluminum conductor steel reinforced(ACSR/RE)
(7)aluminum conductor aluminum alloy reinforced(ACAR)
(8)aluminum conductor steel supported (ACSS)
Your best choice:Zhengzhou Jinshui Commerce & Industry Co., Ltd.
(1) ,More than 20 years experience.
(2) ,100,000m² factory,500 staffs,annual output 100,000 metic tons.
(3) ,Sound Quality Control
- Material inspection;
- manufacturing inspection;
- Finished products inspection;
- Inspection before delivery.
- Third party inspection.
- Inspection of storage at port of departure.
(4),Best service.
(5),Plenty of material and lobor gurantee the delivery prompt and price competitive.
ASTM B232 Standard:

Code Name	Size	No./Dia.of Stranding Wires		Approx. Overall Dia.	Approx. Weight	Code Name	Size	No./Dia.of Stranding Wires		Approx. Overall Dia.	Approx. Weight
	AWG or MGM	Alum.	ST.				AWG or MGM	Alum.	ST.
		No./mm	No./mm	mm	kg/km			No./mm	No./mm	mm	kg/km
Swanate	4	7/1.96	1/2.61	6.53	93	Tern	795	45/3.38	7/2.25	27.03	1300
Sparrow	2	6/2.67	1/2.67	8.01	129	Condor	795	54/3.08	7/3.08	27.72	1461
Sparate	2	7/2.47	1/3.30	8.24	148	Cuckoo	795	24/4.62	7/3.08	27.74	1461
Robin	1	6/3.00	1/3.00	9.00	163	Drake	795	26/4.44	7/3.45	28.11	1550
Raven	1/0	6/3.37	1/3.37	10.11	206	Coot	795	36/3.77	1/3.77	26.41	1184
Quail	2/0	6/3.78	1/3.78	11.34	259	Mallard	795	30/4.14	19/2.48	28.96	1728
Pigeon	3/0	6/4.25	1/4.25	12.75	327	Ruddy	900	45/3.59	7/2.40	28.73	1472
Penguin	4/0	6/4.77	1/4.77	14.31	412	Canary	900	54/3.28	7/3.28	29.52	1554
Waxwing	266.8	18/3.09	1/3.09	15.45	422	Rail	954	45/3.70	7/2.47	29.61	1560
Merlin	336.4	18/3.47	1/3.47	17.35	532	Catbird	954	36/4.14	1/4.14	28.95	1421
Linnet	336.4	26/2.89	7/2.25	18.31	656	Cardinal	954	54/3.38	7/3.38	30.42	1753
Oriole	336.4	30/2.69	7/2.69	18.83	737	Ortlan	1033.5	45/3.85	7/2.57	30.81	1690
Chickadee	397.5	18/3.77	1/3.77	18.85	629	Tanager	1033.5	36/4.30	1/4.30	30.12	1539
Ibis	397.5	26/3.14	7/2.44	19.88	775	Curlew	1033.5	54/3.52	7/3.52	31.66	1900
Lark	397.5	30/2.92	7/2.92	20.44	871	Bluejay	1113	45/4.00	7/2.66	31.86	1821
Pelican	477	18/4.14	1/4.14	20.70	754	Bunting	1192.5	45/4.14	7/2.76	33.12	1949
Flicker	477	24/3.58	7/2.39	21.49	877	Grackle	1192.5	54/3.77	19/2.27	33.97	2190
Hawk	477	26/3.44	7/2.67	21.80	931	Bittern	1272	45/4.27	7/2.85	34.17	2080
Hen	477	30/3.20	7/3.20	22.40	1044	Pheasant	1272	54/3.90	19/2.34	35.10	2335
Osprey	556.5	18/4.47	1/4.47	22.35	880	Skylark	1272	36/4.78	1/4.78	33.42	1895
Parakeet	556.5	24/3.87	7/2.58	23.22	1023	Dipper	1351.5	45/4.40	7/2.92	35.16	2210
Dove	556.5	26/3.72	7/2.89	23.55	1085	Martin	1351.5	54/4.02	19/2.41	36.17	2481
Eagle	556.5	30/3.46	7/3.46	24.21	1219	Bobolink	1431	45/4.53	7/3.02	36.24	2342
Peacock	605	24/4.03	7/2.69	24.20	1112	Plover	1431	54/4.14	19/2.48	37.24	2628
Squab	605	26/3.87	7/3.01	24.51	1180	Nuthatch	1510.5	45/4.65	7/3.10	37.20	2470
WoodDuck	605	30/3.61	7/3.61	25.25	1325	Parrot	1510.5	54/4.25	19/2.55	38.25	2773
Kingbird	636	18/4.78	1/4.78	23.88	1007	Lapwing	1590	45/4.77	7/3.18	38.16	2599

Aluminum Sectional Area		Stranding No. and Dia.		Approx. Overall Dia	Approx. Weight	Calculated Breaking Load	Calculated D C Resistance at 20oC	Code Name
AWG	(mm2)	Al.	St.	(mm)	(kg/km)	(KN)	(Ω/km)
6	13.30	6/1.68	1/1.68	5.04	53.75	5,303	2.157	Turkey
4	21.18	6/2.12	1/2.12	6.36	85.57	8,302	1.335	Swan
4	21.12	7/1.96	1/2.61	6.53	99.56	10,642	1.352	Swanate
2	33.59	6/2.67	1/2.67	8.01	135.70	12,653	0.854	Sparrow
2	33.54	7/2.47	1/3.30	8.24	158.60	16,171	0.852	Sparate
1	42.41	6/3.00	1/3.00	9.00	171.40	15,852	0.676	Robbin
1/0	53.52	6/3.37	1/3.37	10.10	216.20	19,455	0.536	Raven
2/0	67.32	6/3.78	1/3.78	11.30	272.00	23,529	0.426	Quail
3/0	85.14	6/4.25	1/4.25	12.80	344.00	29,417	0.337	Pigeon
4/0	107.20	6/4.77	1/4.77	14.30	433.40	37,055	0.268	Penguin
266800	135.00	18/3.09	1/3.09	15.50	430.50	30,519	0.213	Wax wing
266800	134.90	26/2.57	7/2.00	16.30	545.40	26,403	0.214	Partridge
300000	152.20	26/2.73	7/2.12	17.30	614.60	56,410	0.190	Ostrich
336400	170.20	18/3.47	1/3.47	17.40	542.90	38,487	0.169	Merlin
336400	170.60	26/2.89	7/2.25	18.30	689.90	62,918	0.169	Linnet
336400	170.50	30/2.69	7/2.69	18.80	784.50	77,267	0.170	Oriole
397500	201.60	24/3.27	7/2.18	19.60	762.50	65,099	0.143	Brant
397500	201.30	26/3.14	7/2.44	19.90	813.50	72,426	0.143	Ibis
397500	200.90	30/2.92	7/2.92	20.40	924.40	90,485	0.144	Lark
477000	242.3	18/4.14	1/4.14	20.70	772.60	52,302	0.119	Pelican
477000	241.7	24/3.58	7/2.39	21.50	914.90	73,243	0.120	Flicker
477000	241.6	26/3.44	7/2.67	21.80	975.50	86,011	0.120	Hawk
477000	241.3	30/3.20	7/3.20	22.40	1,110.00	105,611	0.120	Hen
556500	282.4	18/4.47	1/4.47	22.40	900.70	60,972	0.120	Osprey
556500	282.2	24/3.87	7/2.58	23.2	1,068.00	84,424	0.1030	Parakeet
556500	282.6	26/3.72	7/2.89	23.6	1,142.00	100,838	0.1030	Dove
556500	282.1	30/3.46	7/3.46	24.2	1,298.00	123,470	0.1030	Eagle
605000	306.2	24/4.03	7/2.69	24.2	1,159.00	95,861	0.0948	Peacock
605000	307.2	26/3.87	7/3.01	24.5	1,236.00	108,317	0.0944	Squab
605000	307.2	30/3.61	7/3.61	25.3	1,414.00	128,736	0.0945	Duck
605000	307.2	30/3.61	19/2.16	25.2	1,398.00	133,082	0.0945	Teal
636000	323.1	18/4.78	1/4.78	23.9	1,031.00	69,722	0.0890	Kingbirad
636000	323.0	24/4.14	7/2.76	24.8	1,222.00	101,038	0.0894	Rook
636000	322.5	30/3.70	19/2.22	25.9	1,472.00	14,029	0.0897	Egret
666600	337.2	24/4.23	7/2.82	25.4	1,276.00	105,478	0.0856	Flamingo
666600	338.3	26/4.07	7/3.16	25.8	1,366.00	117,258	0.0854	Gannet

Other standard and sizes can also be produced as you required.
Company Profile Zhengzhou Jinshui Industry & Commerce Co.Ltd is located in the national class Zhengzhou high and new technology industries zone in Zhengzhou ,Henan province. We have owned a number of exclusive essential manufacture technologies and has pass ISO 9001 Quality Management Systerm ,ISO 14001 Environmental Management Systerm ,OHSAS18001 occupational Heath Management Systerm ,ISO 10012 Measurement Management Systerm and others from China and abroad.
We have been engaged in producing electric cable and wire for nearly 20 years, and we are also 12 year gold supplier. And we are confident that we can offer the best service and quality for you .
Our product range is as following:
*Bare conductors(AAC, AAAC, ACSR, Galvanized steel wire)
*Aerial Bounded Cable (Duplex, Triplex,Quadruplex)
* PVC insulated wire (Rated voltage to 450/750V)
*THHN/THWN wire
*PVC insulated Power Cable
*XLPE insulated Power Cable
*Rubber sheathed Cable
*Control Cable
*Welding Cable
*Cable Accessories
We take part in many fairs and exhibitions in China and abroad . Our aim is to be our customer's factory in Zhengzhou ,China . We are here to help you placing orders of cost-effective electric cable and keep tracking your products and shipment.

Our Factory 1 Professional production lines, experienced worker, ensure the production of every thing is fine and accurate.
2 We choose excellent raw materials carefully to ensure the quality and meet the need of customers.
3 Mechanical testing of Cables is done to determine the quality and mechanical characteristics before delivery.
Packaging and Shipping We have a professional handling equipment to ensure the delivery of products.
Inner packing: wooden drum, iron wooden drum and iron drum.
Outer packing: 20',40' container
Other packages are available according to client's request
We always pack and load the products according to the customers' demand, and we have rich experience on it.
FAQ 1. who are we?
We are based in Henan, China, start from 2001,sell to Southeast Asia(39.00%),North America(20.00%),South America(15.00%),Mid East(15.00%),Africa(10.00%),Domestic Market(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Wire,Cable
4. why should you buy from us not from other suppliers? Jinshui Wire & Cable Group is also a key company of high and new technology. We have more than 20years export experience and know most of standards well. we can produce more than 1,400 types of cables and wires in scores of categories.
5. what services can we provide? Accepted Delivery Terms: FOB,CIF; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card; Language Spoken:English,Chinese,Spanish Welcome your kind inquiry!

---
