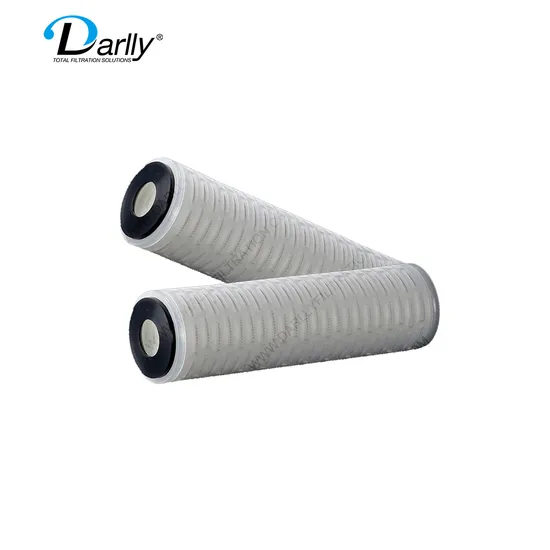

Blueflo™ PES Series filter cartridge is constructed of imported hydrophilic asymmetric PES membrane and imported non-woven fabrics and silk netting as support and then pleated.The cage,PP core and end cap are thermally welded with media without using any glue.All cartridges are manufactured and assembled in a clean room environment.100% of the cartridges are integrity tested and flushed with EDI pure water.It is suitable for filtering weak acid/alkali based liquid and ultra pure water.
• High hydrophilic membrane,high flow rate,the pores of membrace uniformly distributed.
• The membrane construction of asymmetric enlarge the dirty capability andextend the life time of the filter cartridge.
• Do not use any glue and surface active agent during production process which reduces the risk of precipitation effectively.
| Dimension |
| OD | Ø 69mm |
| ID | Ø 28mm |
| Length | 10" , 20" , 30" , 40 " |
| Removal Rating | 0.1 , 0.22 , 0.45 , 1 , 3 , 5 , 10 , 20 , 50 µm |
| End Cap Type | DOE , 213 , 222 , 226 , Flat , Fin |
| Material of Constructions |
| Filter Media | Polyethersulfone (PES) Membrane |
| Support | Polypropylene (PP) |
| Cage | Polypropylene (PP) |
| Core | Polypropylene (PP) , SS |
| End cap | Polypropylene (PP) |
| Sealing | Silicone , EPDM , NBR , Viton , Teflon , E-FKM |
| Performance |
| Max. Operating Temperature | 80ºC |
| Max. Operating DP | 4 bar@ 21ºC |
| 2.4 bar@ 80ºC |
