Bck6650 Horizontal Slant Bed CNC Turning Lathe Machinecnc Lathe Machine Price

Product Description

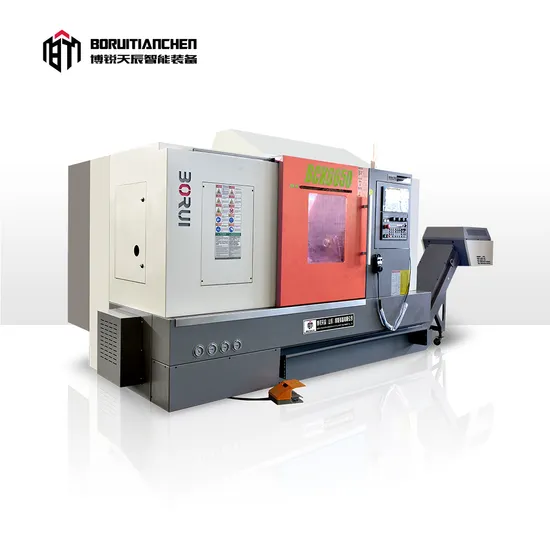

BCK6650 Low Cost Horizontal Slant Bed CNC Turning Lathe Machine

Product Description
Product Parameters

Technical parameter	unit	BCK6650
Max. swing dia.over bed	mm	Φ650
Max. swing over cross slide	mm	Φ400
Max. machining length	mm	450/680
Max. swing dia.-disc type	mm	Φ360
Max. swing dia.-shaft type	mm	Φ250
Spindle model		A2-6
Spindle bore	mm	Φ66
Chuck type	inch	8-inch hydraulic chuck
Max. spindle speed	r/min	3000rpm
Main motor	KW	11kw (optional:15kw)
X axis rapid traverse	m/min	20
Z axis rapid traverse	m/min	16
X axis travel	mm	250
Z axis travel	mm	520/750
Guide way type		linear way
Tool post type		12 Station Servo Power Turret
Cutting tool size	mm	25X25 Φ40
Tailstock quill dia/ traverse	mm	φ80/L80
Tailstock Quill taper		MT4
Positioning accuracy	mm	0.01/0.012
Repeat positioning accuracy X/Z	mm	0.006/0.008
Processing accuracy	level	IT6
Roughness	um	Ra≤1.6
Dimensions	mm	2900/3100x2000x2000
Weight	kg	3600/4000

our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
FAQ
1:How ca
n I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
