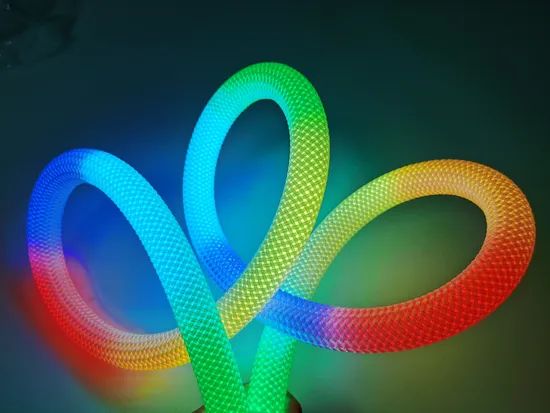

New Product a Woven Cover on Top of The Tubing 360 Degree Emitting Silicone Round LED Neon Strip Light

Product Description

Technical Parameters LED Light Source: 2835, 5050, SMD LED,
Viewing angle: 360 degrees
Working voltage: DC12V, DC24V,
Color: White, Warm white, Natural white, Red, Green, Blue, Yellow, RGB
PCB Width: 8mm, 10mm,
PCB color: White
LED Quantity per meter: 240led
Waterproof rate: IP65, IP67. IP68
Waterproof method: Surface Epoxy Plated, Silicone Pipe, Full Silicone Gel
Working temperature: -20~+60 celsius degree
Packing: 5m/roll, 1roll/bag

SMD 2835 LED QTY./M	Max.W/M	Input Voltage	CRI	FPCB (mm)	Size (mm)	M/Roll	Colour	cut Size(mm)	Clip	Item No.
240	20W	DC24V	≥90	8mm	D22	5M	2700K 3000K 4000K 6500K	6LED/50mm	2pcs/m	ATA-NS22D08240XX
240	20W	DC24V	≥90	8mm	D25	5M	2700K 3000K 4000K 6500K	6LED/50mm	2pcs/m	ATA-NS25D08240XX
240	20W	DC24V	≥90	10mm	D30	5M	2700K 3000K 4000K 6500K	6LED/50mm	2pcs/m	ATA-NS30D10240XX

structure:
1. Lighting: 360°beam angle, uniform and soft lighting
2. Diffuser: Diffuser interior lighting to lighting surface evenly
3. Diffuser Hole, diffuser lighting
4. Transparent part lighting
5. PET Break-proof Plate:
It has break-proof technology, will not be break off FPCB&circuit board when pulling
* Professional structure design, soft and even lighting, uniform colour temperature
* Adopt Silicone material, ani-yellowing, high temperature resistance, can be used outdoors in bad weather
* Resistant to corrosion acid and alkali, can be used in extremely harsh environment, good waterproof performance
* Good flexibility, easily bending, easy to shape, anti-tension
Product Installation
Easy installation dedicated for room- and deco-light
The matched connector for easy install after cutting strip
The overall height allows installation in narrow places
Low power consumption and high brightness output
Certification: UL, TUV, GS, CB, SAA, LVD, EMC, FCC, CE, RoHS
Factory
Producing Line
Safety Information
1.The SMD light ribbon itself and all its components may not be mechanically stressed. Assembly must not damage or destroy conducting paths on the circuit board.
2.Installation of LED light ribbon (with power supplies) needs to be comply with all applicable electrical and safety standards. Only qualified personnel should be allowed to perform installations. Correct electrical polarity needs to be observed. Wrong polarity may destroy the ribbon.
3.Parallel connection is highly recommended as safe electrical operation mode.
4.Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the ribbon.
5.Please ensure that the power supply is of adequate power to operate the total load.
6.When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical insulated points between ribbon and the mounting surface.
7.Please pay attention to standard ESD precautions when installing the ribbon.
Applications
Indoor and outdoor decoration lightings.
Idea for in advertisement and cabaret, large scale backlight, cabinet, furniture, landscape outlines
Edge-lighting of transparent or diffused materials, to couple light into transparent or diffused glass
Bridge edge lighting
Window display lighting
Car and motorcycle decorative lighting
Path & Building contour decorative lighting
Emergency hallway lighting / rescue signs / advertising signs / light boxes
Architectural decorative lighting, villa, restaurant, hotel, meeting room, show room, shop, counter, etc
Festival lighting, General lighting, Task lighting, Household appliances, Architectural lighting, Decorative / pathway lighting, Street lighting

User Manual:
Switch off power of the mains supply or respectively of the connection lead before doing any works.
The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quaity Control:
Stability TEST: make sure 100% of the lamps be aging test at least 48hours
Lighting TEST: make sure 100% of the lamps be lighted before packing
Drop TEST: make sure every single light have been well protected by box
Contact
Peony Jin

Please feel free to send us your inquiry, We are at your service any time!

---
