Concrete Batching Plant Capacity 100 M3 / Hour Nigeria Ready Mix Concrete Plant for Sale

Product Description

Product Description

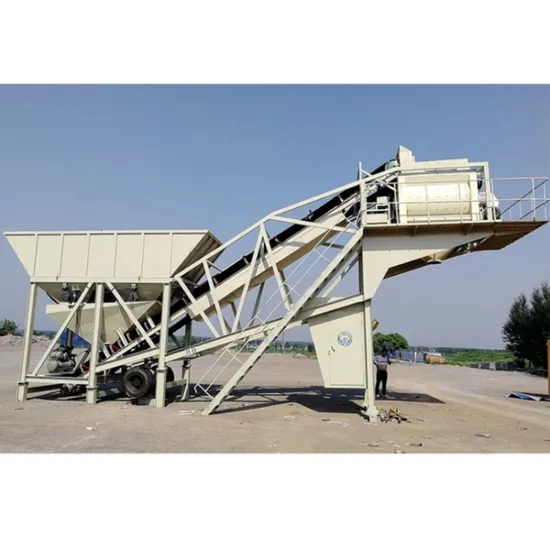

What is a Mobile Concrete Batching Plant?Mobile concrete batching plant is a kind of equipment for producing concrete. It is a new type of concrete batching plant equipment further developed by our company on the basis of conventional concrete batching station. The whole set of equipment consists of aggregate/fly ash/cement/additive/water batching system, mixing system, automatic control system, frame support, etc. According to user needs, you can freely choose drum mixer or twin-shaft mixer. Composition

Mixer: It serves as the fundamental component of the plant, responsible for mixing aggregates, cement, water and additives in a preset proportion to make concrete. Aggregate Feed System: It ensures accurate concrete mix proportioning by means of well-designed components such as aggregate bins, conveyor belts, and metering devices. Cement Storage System: Consisting of cement silo, screw conveyor and dust collector, it not only ensures sufficient cement storage, but also keeps cement dry and clean by leveraging advanced technical means, thereby capable of supplying high-quality raw materials for concrete production. Water and Additives Feed System: Employing a water tank, water pump, additive tank, and metering unit, the system precisely dispenses water and various additives to optimize concrete performance. Control System: Serving as the "intelligent brain" of the entire plant, it leverages electrical components, sensors, PLCs, and human-machine interfaces to achieve automated and intelligent management of the production process.
Product Parameters

YHZ100
Items	parametric
Product Type	Cement concrete mixing equipment
Efficiency	100m³/h
Discharge height	3.8m
Installed capacity	≈110kw
Weights	≈33t
Area	30m×12m
Matching System
Mixing systems,Aggregate weighing systems,Enhancement System,Cement weighing system,Fly ash weighing system, Water weighing system,Liquid Admixtures Weighing system,air system,screw conveyor,silo,operating

Advantages
Easy Transport: The mobile design allows for quick and easy transport from one location to another. Minimal Infrastructure Investment: Requires minimal infrastructure for installation. Quick Installation: Can be set up and ready for production in a short period. Developed through extensive R&D, the plant is a high engineering product that combines the power and capacity of stationary plants with the advantages of mobility, changing the habits of low-capacity production in mobile concrete plants. Features
Features of mobile concrete batching plant
Portable concrete plant can be installed and put into operation quickly. It is easy to maintain and move, and the small mixing plant can be transported with just one or two trailers. The structure of the mobile concrete plants are modular, which is easy to assemble and quick and convenient to install. You don't need to lay the foundation in advance before using the mobile cement batch plant. You only need to harden the ground or lay a layer of concrete, which greatly saves the cost of laying the foundation. The mobile concrete plant for sale is coated with special material, which has excellent rust resistance and is not easy to rust. The whole plant is made of ultra-high toughness steel plate, which is long-lasting and wear-resistant. PLC control system can achieve intelligent control of the entire workflow. Components
Components of mobile batch plant
Company Profile
Tai'an Chenli Construction Machinery Co., Ltd. is a technology-based company focusing on the development, design, manufacturing, engineering and service of intelligent complete equipment for building materials. The current leading products are cement concrete batching plants, mortar production lines, tower type sand making machine, and environmental protection equipment for batching plants. The products win the trust of the market with high standards and high reliability, and are deeply trusted by users.
Certifications

Taian Chenli welcomes you to the company for inspection guidance, business negotiation, and technical consultation. We are willing to work with you to jointly commit to the cause of intelligent complete equipment for environmentally friendly building materials.

FAQ
1. Do you offer warranty on your equipment?
Yes, we offer a full warranty on new equipment purchasing.
2. Where is the port of loading?
Normally the port of loading is QINGDAO PORT, SHANDONG, CHINA.
3. Can you print other LOGO on your machine?
Yes, we can, and we also offer OEM service.
4. Who are we?
We are professional manufacturer of concrete batching plant.
5. Where are you?
We are located in TAIAN City SHANDONG Province China.

---
