Two 10/100/1000m Outdoor Eoc Master CATV

Product Description

Two 10/100/1000M Outdoor EOC Master CATV
Summary

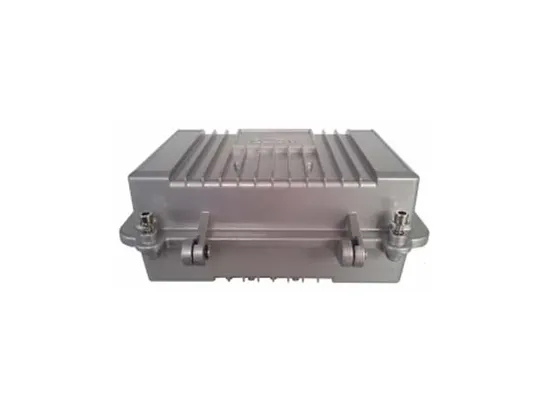

7102 is the outdoor EOC Master of the EOC (Ethernet Over Coaxial) solution. It is in compliant with HomePlug AV standard. The 7102N have one EOC module. It provide two TV input, two CABLE output and two 10/100/1000M auto-negotiation uplink ports. It offers the high-speed data service to the customer based on the coaxial cable network.
Features HomePlug AV solution, based the Qualcomm AR7410 chipset.
Modularized design, easy for maintain
Aluminum alloy die casting shaping, good heat dissipation
Outdoor waterproof designed, 60V/220V power supply optional
7.5-65Mhz frequency for EOC signals., no influence on CATV Service
PHY Layer speed 600Mbps, MAC Layer throughput up to 320Mpbs
Support bi-direction data encryption
Support broadcast storm limitation
Support data packet statistics
Support auto-update and auto-configuration
Support WEB,CLI,SNMP based network management
Support On-line upgrading
Specification

Item	Parameters	Specification
Interface and LEDIndicator	RF Port	1*EOC low-frequency signal output port, support F- Female or SMB connector
	Ethernet Port	Two 10/100/1000M Auto-negotiation RJ45 ports
	LED Indicator	1 for Power Supply Status 1 CABLE Link Status indicator 2 for Ethernet Ports Status
PerformanceParameters	RF Parameters	Frequency Band :7.5-65MHz RF Output Level:115±5dBuv Receive sensitivity: 45dBuv Return Loss:>16dB Output Resistance:75Ω
	Transmission	PHY Layer: 600Mbps Throughput on MAC Layer: 320Mbps
	Modulation Mode	OFDM~ 2690~carriers 4096,1024,256,64,16,8~QAM, QPSK, BPSK, ROBO
	Working Mode	TDMA/CSMA
	Encryption Mode	AES-128
Standard	EOC Standard	IEEE P1901(Draft) HomePlug AV
	Ethernet Standard	IEEE 802.3, IEEE 802.3x, IEEE 802.3u IEEE802.1P, IEEE802.1Q
Software	Network Management	WEB, CLI, SNMP
	Software Features	VLAN, QOS, Bandwidth Control, Broadcast storm limitation
Physical Features	Power supply & Consumption	Power Supply:220V/60V optional Consumption:<7W
	Size & Net weight	Dimension:190mm×137mm×98mm Weight:1.5kg

---
