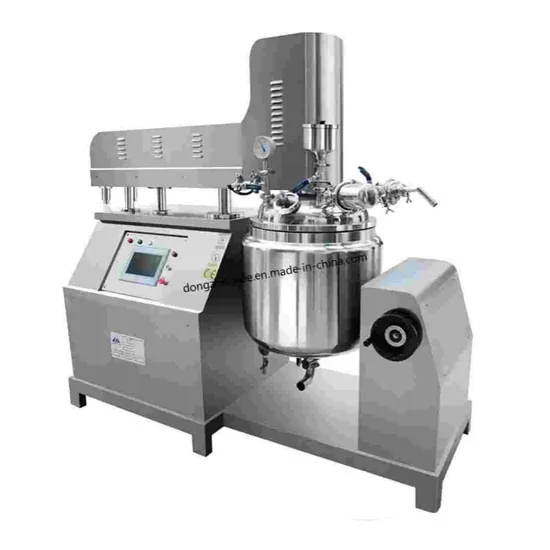

Dzjx Intelligent Automatic Lifting Emulsifier Heating and Cooling Homogenizer with Tank

Product Description

DZJX Intelligent automatic lifting emulsifier heating and cooling homogenizer with tank
Product DescriptionDZJX Intelligent automatic lifting emulsifier heating and cooling homogenizer with tank 1. The machine has triple blender, hydraulic lift cover, high-speed homogeneity blender (Speed is 0-3500r/min, frequency speed regulation) and low-speed scraper blender (Speed is 0-40r/min, frequency speed regulation). Fast-cutting vortex emulsification blender is used in the homogenizer part, which can scrape in a low speed and automatically blend and snuggle up to the bottom and wall of boiler. The machine draws powder material by the way of vacuum in order to prevent the powder flying. 2. The whole working procedure is operated in the condition of vacuum in order to prevent the material coming into being bubble after high-speed blending and reach the request of sanitation and asepsis. CIP cleaning system is equipped in this system. The contact part of vessel and material is made from SUS316L material. Mirror finish of the inside surface is 300EMSH. 3. In order to ensure the stabilization of the control, the vacuum pump is the products of Germany Siemens Company, the button is produced by Japan Fuji Company, the transducer is the product of Japan Matsushita Electric Industries and the electro-control part is the product of Siemens Company. The machine is made completely according to the GMP request, which is the most advanced and most perfect cream production equipment. 4. The machine is specially designed adopting advanced technology of oversea according to the cosmetic and ointment production technology. The machine is made up of pre-treatment boiler, vacuum emulsification blending boiler, vacuum pump, hydraulic system and worktable. 5. The machine has easy operation, steady capability, good homogeneity, high efficiency, reasonable structure, small volume and high automation level and easily clean.https://dongzhenjixie.en.made-in-china.com/contact-info.htmProduct Parameters

Model	Effective capacity(L)	Emulsifying Motor (kw) (RPM)		Agitator(KW)(RPM)		Vacuum pump(KW) Limit Vacuum		electirc Heating power (kw)	Steam heating pressure(Mpa)
DZH-5L	5	0.55	0-3600	0.4	0-65	0.37	-0.1	6	0.2
DZH-10L	10	1.1		0.55		0.37	-0.1	6
DZH-20L	20	1.5		0.55		0.37	-0.1	9
DZH-50L	50	3		0.75		0.75	-0.1	12
DZH-100L	100	4		1.5		1.5	-0.1	24
DZH-200L	200	5.5		1.5		2.2	-0.1	28
DZH-300L	300	7.5		3		2.2	-0.1	32

DZH-500L	500	11	0-3600	4	0-65	4	-0.1	50	0.2
DZH-1000L	1000	15		5.5		4	-0.1	54
DZH-2000L	2000	18.5		7.5		5.5	-0.1	recommend steam heating
DZH-5000L	5000	22.5		15		7.5	-0.1

* For more models, please click here to contact us.
Applications
This equipment is suitable for the following industries:
Cleaning products: shampoo, shower gel, laundry detergent, dishwashing liquid, porcelain cleaner, porcelain cleaner, etc.
Oil products: engine oil, lubricating oil, grease
Edible oil products: peanut oil, rapeseed oil, blended oil, etc.
Cosmetic products: toner, lotion, cream, etc.
Biological products: fermentation products, etc.Product details Siemens PLC Touch Screen Control Box
* Higher Class Appearance * Can Store Manufacturing Data * Easier To Monitor Machine's workHigh Speed Disperser
* 1440rpm disperser inside oil tank and water tank ,with heating function to melt raw material quickly.
Bidirectional Mixing Paddle With Scraper
* 45 degree inclined blade,ensure material rolling and stirring effect * Seamless welding,easier to clean after production. What You See Is What You Get
* More details, don't be afraid to show.
* A variety of mixing blades can be customized.https://dongzhenjixie.en.made-in-china.com/contact-info.htmlDetailed Photos
Company Profile
* Xinxiang Dongzhen machinery manufacturing Co., LTD
1.With 36 years of professional production of rubber, food, medicine, chemical and mineral equipment experience, and has a good cooperative relationship with the world 500.
2.All raw materials purchased with domestic and foreign well-known manufacturers.
3.We have designed production lines for many companies, such as cosmetics production line ,clove production line, blue bubble production line, flour production line, yeast production line, detergent production line,etc.
4.1 Years Warranty, 14 Days Delivery, Factory Price.
5.14800 m2 factory, Own R&D Team.
6.Free design service, free professional solutions.
7.Passed ISO9001, CE, SGS, Intetek certificates.
https://dongzhenjixie.en.made-in-china.com/contact-info.html
FAQQ: Are you a factory?A: Yes ,we are a factory of mixing,grinding,sieving,conveying and packaging machine with more than 30 yearsmanufacturing experience. Q: How long is your warranty? After warranty, what if we encounter problem about the machine? A: Our warranty is one year. After warranty we still offer you lifetime after-sales service, anytime you need we are there to help. If the problem is easily to solve, we will shoot a solution video for you. If video doesn't work out, we will send engineer to your factory. Q:Are your machines difficult to operate? How do you teach us using the machine?A: Our machines are fool-style operation design,very easy to operate.Besides,before delivery we will shoot instruction video to introduce machines'functions and to teach you how to use them. If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines. Q: Can I come to your factory to observe machine running? A: Yes, customers are warmly welcome to visit our factory. Q:Can you make the machine according to buyer's request?A: Yes,OEM is acceptable. Most of our machines are customized design based on customer's requirements or situation

---
