10kv 6.3kv 6kv/0.4kv 800kVA 1000kVA Three Phase Sc (B) 14 Energy Efficiency Gread2 Dry-Tape Transformer

Product Description

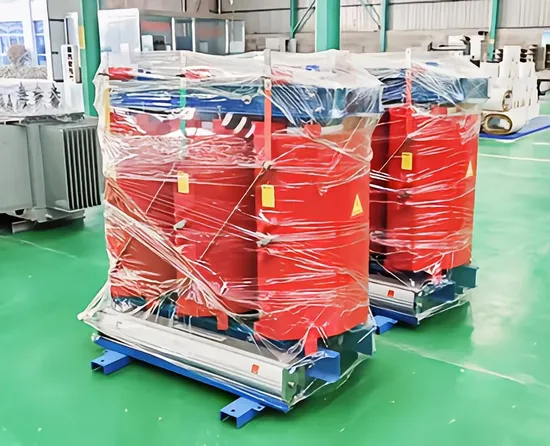

10kv 6.3kv 6kv/0.4kv 800KVA 1000KVA Three Phase SC(B)14 Dry-Tape Transformer
Product Features
1.Due to its strong short-circuit resistance , low maintenance workload , high operating efficiency , small size , and low noise , dry-type transformers are commonly used in places with high performance requirements such as fire and explosion prevention . Safe , fireproof , pollution-free , and can operate directly on high load electricity consumption.
2. They adopt advanced domestic technology with high mechanical strength , strong short-circuit resistance , small partial discharge , good thermal stability , high reliability , and long service life .
3.They cause low loss and quiet , with significant energy-saving effect and no maintenance required .
4.Their functions of heat dissipation and overload capacity are strong and good , also capable of short-term overload operation under forced air cooling.
5.These products have certain moisture-proof properties and can operate in harsh environments with high humidity .
6.Dry type transformers can be equipped with a comprehensive temperature detection and protection system . They adopt an intelligent signal temperature control system that can automatically detect and display the working temperature of each three-phase winding , with the functions of automatically start and stop the fan , and the alarm and trip settings also be settled .
7.They are small in size with light weight , occupy less space and don't cost much on the installation.rformance
Technical Specifications

Form	Rated Capacity (KVA)	Connection group label Number	Voltage Combination (KV)			No-load Loss (W)	Load Loss(W) 120 Celsius Degree	No-load Current(%)	Short Circuit Impedance
			High Pressure	Tapping Range	Low Pressure
SC13-30	30	Yyn0 or Dyn11	10 6.3 6	±5% ±2×2.5%	0.4	135	640	2	4
SC13-50	50					195	900	2
SC13-80	80					265	1240	1.5
SC13-100	100					290	1410	1.5
SC13-125	125					340	1660	1.3
SC(B)13-160	160					385	1910	1.3
SC(B)13-200	200					445	2270	1.1
SC(B)13-250	250					515	2480	1.1
SC(B)13-315	315					635	3120	1
SC(B)13-400	400					705	3590	1
SC(B)13-500	500					835	4390	1
SC(B)13-630	630					965	5290	0.85
SC(B)13-630	630					935	5360	0.85	6
SC(B)13-800	800					1090	6260	0.85
SC(B)13-1000	1000					1270	7310	0.85
SC(B)13-1250	1250					1500	8720	0.85
SC(B)13-1600	1600					1760	10500	0.85
SC(B)13-2000	2000					2190	13000	0.7
SC(B)13-2500	2500					2590	15400	0.7

Part of equipment
Testing center
Company Profile
Anhui Sanbian Intelligent Technology Co . Ltd . is a manufacturing enterprise that integrates production , development and sales of power transformers , high and low voltage switch gear , and supporting products etc . The company is located at the intersection of Ziyu Road and Tengfei Road in the Economic Development Zone of Duji District of Anhui Province . The total investment of the company is 40 million yuan With advanced technology , production and testing equipment are based on ISO9000 quality certification system , and the company adopts computer-aided design to provide customers with environment- protecting , energy-saving , low -carbon and high-quality products , and these products can basically meet the fundamental requirements of the various markets and multiple customers .
Our main products:
--Oil-immersed transformer: S13 Oil Immersed Distribution Transformer, S22 Oil Immesed Transformer, S11 Oil Immersed Transformer
--Dry-tape transformer: SG(B)13 Dry Tape Transformer, SC(B)13 Dry Tape Transformer, 35KV Dry Tape Transformer,
SC(B)14 Energy Efficiency Grade2 Dry Tape Transformer, SC(B)18 Energy Efficiency Grade2 Dry Tape Transformer,
--Amorphous alloy transformer: SH15 Amoorphous Alloy Transformer, S22 Energy Efficency Grade1 Oil Immersed Transformer
--Switch gear: KYN28A-12 Indoor AC High Voltage Metal Removable Switch Gear, KGN15-12 Alternating-Current Metal-Enclosed Switch Gear,
GCS Low Pressure Draw-Out Switch Gear, MNS Low Pressure Draw-Out Switch Gear, GGD Low Voltage Switch Gear
--Substation: ZGB Tape Combined Transformer, YB Preinstalled substation, 10KV State Grid Standard Preinstalled Substation
Certificates:
patent1 patent2 patent3
patent4 patent5 patent
FAQ
1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Huaibei City, Anhui Province.
2.Q: How can I pay you?
A: Pay by T/T and L/C is acceptable.
3.Q: What about the production?
A: In general, it take 4~6weeks and it depend on the different style.
4. Q: How can we guarantee quality?
A: Always make a final Inspection before shipping.
5.Q: Can you provide samples? A: We can provide the sample, but you need to pay the fee. And the fee is negotiable.
5.Q: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
6.Q: Can I have a catalogue and price list for my MOQ trial order? A: All of our products are made in China or displayed on the official website, you are always welcome to ask us directly for more information.

---
