Woodworking Horizontal Cutting Solid Wood Machinery Heavy Veneer Slicer

Product Description

We supply high quality BB1228 Woodworking Horizontal Veneer Slicer Machine Product show

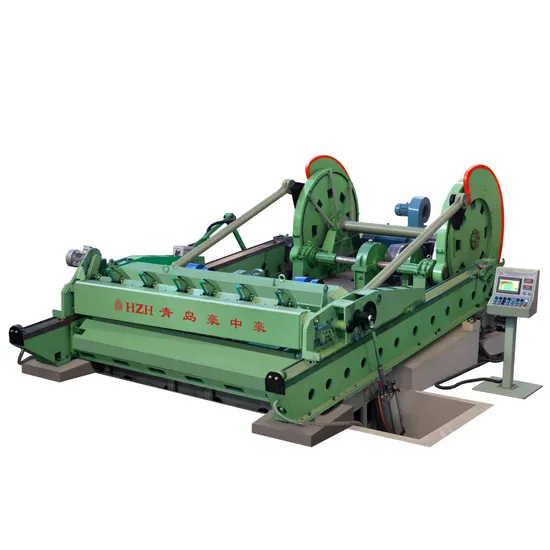

1.Product Show
Product Description
2.Product Description

Model	BB1228
Max cutting size	2600*1300*900mm
size of the knife	2840*240*15mm
Slicing thickness	0.2-3mm
Slicing speed	10-30pcs/min
clamping method	Hydraulic
Main motor	90KW (DC)
Lifting motor	5.5KW servo motor
Hydraulic motor	5.5kw
Blower motor	0.55kw*2sets
Conveyor belt	2.2kw
Blade holder and pressure bar separately motor	1.5kw
Lubrication motor	0.37kw
Working pressure	0.15-0.4mpa
Overall dimensions	7000*4210*2200mm

Installation Instructions
3.Main Application
BB1228 veneer slicer is mainly used for slicing recon wood board material with high production efficiency. The sliced veneer is of uniform thickness and beautiful texture. It is suitable for decorative veneer of plywood, particle board, block board furniture, construction, flooring and other industries. Product Feature
4.Main Features
The slicer base rail is installed at an inclined angle, which makes planning labor-saving and can plan thick wood veneer.
Feeding device is controlled by servo motor, slicing veneer with high precision.
The wood clamping is simple and reliable, so that the thickness of the sliced veneer is even.
Knife holder and press ruler holder can be separated automatically, easy to adjust. Detailed Photos
5.Machine Details
Company Profile
6. Company Information
Qingdao Haozhonghao Woodworking Machinery Co., Ltd. previously was Qingdao Woodworking Machinery Manufacturing Company, and was established in 1958.
With more than 50 year experience in making woodworking machines, our main products are Sanding Machine, Panel Saw, Guillotine, Veneer Slicer and Grinder. We firstly put BB1342 vertical slicer into the market in China. We developed BB1135B Horizontal Veneer slicer by integrating the internal and international technologies, the max slicing width reaches 1300mm. We are the first company which was certified by ISO9001 in the industry, and also a hi-tech enterprise in Qingdao.
We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Veneer Slicer and Grinder.
Our website is sandingmachine.en.made-in-china.com; you could get more information about our company and our products.

---
