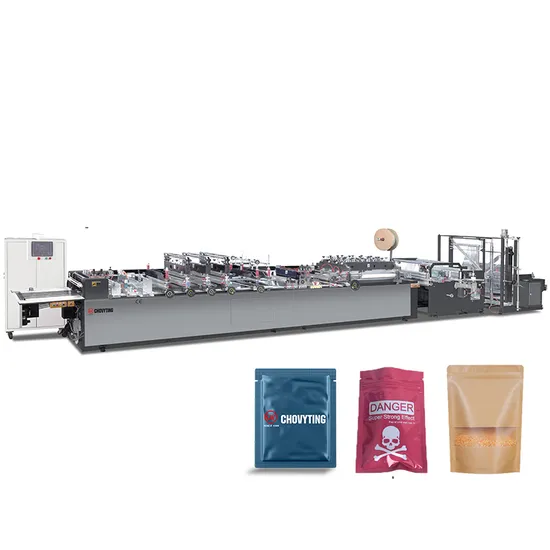

Laminated Stand up Pouch with Zipper Lock Bag Pouch Making Machine

Product Description

CWZD-600C+FD heavy duty multi-function laminated bag making machine + single sheet film folding stand up pouch
Brief introduction:
New design for producing laminated bag (single sheet folded stand up pouch and zipper bag),also can produce pet food bag popular in America and other countries.
FEATURE: Folding, punch,bottom gusset and sealing automatic design Newly design feeding structure, high speed feeding no shake Special design bottom gusset device, easily to operate Double layers unwinding design, suitable for multi-function laminated bag Newly design zipper and stand up device Optional:
1. Air cylinder automatic loading device
2. Hangle hole puncher
Technical parameter:

Type	CWZD-400C+FD	CWZD-500C+FD	CWZD-600C+FD
Unwinder width	800mm	1000mm	1200mm
Bag making length	70-380mm×6(N≤6)	70-380mm×6(N≤6)	70-380mm×6(N≤6)
Bag making width	70-380mm	70-480mm	70-580mm
Bag making speed	40-150pcs/min	40-150pcs/min	40-150pcs/min
Line speed	35m/min	35m/min	30m/min
Total power	38KW	43KW	48KW
Machine weight	3900kg	4100kg	4400kg
Machine dimension	12300X1750X1800mm	12300X1950X1900mm	12300X2050X2000mm

Sample bag
Detailed Photos
Company Profile

---
