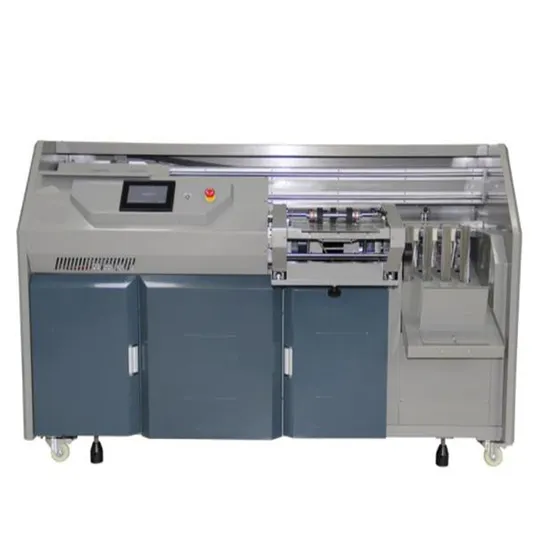

Zx-270 Automatic Book Glue Binding Machine 220V

Product Description

ZX-270 Automatic glue binding machineDescribe:
Auto feeding cover and auto book collection
he max length of binding book:380mm(A4)
The max thickness of binding book:2pages-60mm
Binding speed:450 books/hour
Slippage type:beeline
Glue melt time:about 40 minutes
Milling: 24 teeth sunknfie + milling knife
Three glue roller +side glue roller
Electric:220v 50hz 2100w
Machine weight:380kg
Parameter:

Model	ZX-270
source	220V/110V 50HZ/60HZ
power	2000W-2500W
Maximum adhesive length	300mm
Maximum adhesive thickness	60mm
Display method	Full touch screen
Machine dimensions(cm)	199*112*120

Working principle:
1.Automatically sensing the thickness of the book, automatically adjusting the walking speed of the car, platform height (square and circular angle), and clamp pressure based on the thickness. 2.The operation of the car is controlled by a servo motor, achieving closed-loop control of the car's position, speed, and torque; Overcoming the problem of inaccurate parking 3.Automatic vertical book placement and stacking design. After gluing is completed, it is sent to the vertical board, which smoothly descends and then pushes the book board to keep the books neat and close. Packaging & Shipping
1. The packing of small machines is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Service
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
Company Information
*With 10 years' Experience
*Having ISO 9001-Certified Factory
*Strong R&D capability
*High Quality Guaranteed
*First Class Service And Best Prices
*Primary products:
Automatic High Speed Flute Laminater
ZXSCM book case making machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
Welcome to visit our factory!

---
