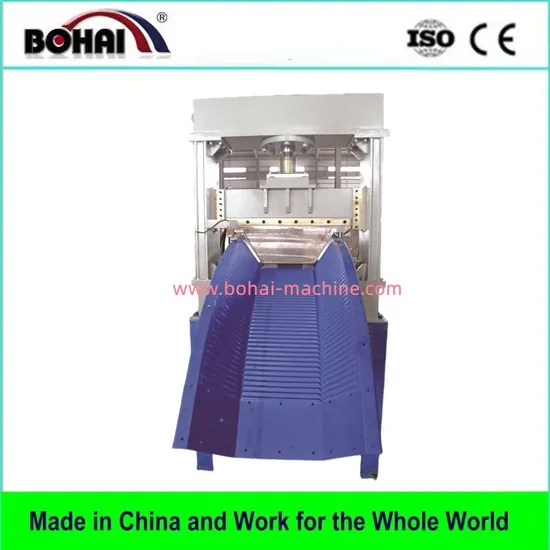

Screw-Joint Roof Panel Roll Curving Machine

Product Description

Screw-Joint Roof Panel Roll Forming Machine
Features
The curved sheet screw jointed equipment is capable of making panels in different sizes based on the requirement of the project. Once finished in the workshop, the product is allowed to be delivered to the construction site directly. The panels jointed by our machine are very convenient for dismounting. The panel makes the building with 100% available space, available in mounting with lighting, pipeline, ventilated devices, warming and cooling systems. The building formed by the panels is removable.
Working Process Building arches Raising arches Choosing the fit arches together Adding the end walls Establishing the foundation of the buildings Transporting the finished curved sheets to construction site Jointing the curved sheets together Hoisting and fastening the jointed curved sheets Reinforcing the curved sheets with the foundation together Building the gables at two sides. Constructing the doors and windows of the buildings Specification:
Dimension: 35000mm×1500mm×1500mm Weight: Around 20T Shearing material: 12CrMoV Shearing type: Mechanical Total motor power: 25KW Main motor: 7.5KW Decoiler motor: 3.0KW Leveling machine motor: 4.0KW Shearing machine motor: 3.0KW Hydraulic station power: 7.5KW
Roller material: 45# high-quality steel (Standard), quenched HRC 55~65, hard chrome plating Shaft material: 45# high-quality steel, galvanized Stands of forming: 10 Feeding width: 1000mm Effective width: 680mm Using rate: 68% Rolling thickness: 1.0-1.2mm Suitable Span: 4m-24m Decoiler: Load bearing: 8t
Equipment Configuration
8t Automatic feeding device (1 piece), Leveling machine (1 piece), Support platform (1 piece), Edge-punching (1set of mold), Ends-punching (1set of mold ), Shearing machine(1 piece), Forming machine (1 piece), Bending machine 1 piece (1set of mold), Hydraulic system, Electrical control system, Support for finished product, etc.
Technological Process
Loading (load & expand galvanized coil on decoiler) → Feeding & Leveling (prepare flat galvanized sheet for punching) → Edge-punching & Ends-punching on flat galvanized sheet → Shearing punched sheet → Roll forming sheared sheet → Bending Roll formed shee
Machine Detailed Photo

Our Company Delivery
Nude packing and load in two 40"HQ container Certificate
Project

---
