Mixing and Transfer Pump

Product Description

Product Description

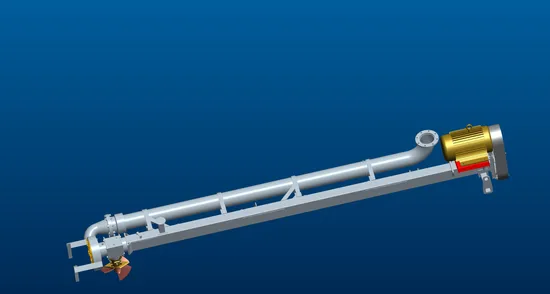

Mixing and transfer pump is to convey high-concentration sewage with a volume concentration of about 6% . It is used to transfer high-concentration manure in dairy farms and is also highly efficient in sewage treatment plants.
Mixing and transfer pump developed by our company adopts the design concept of submerged long-rod sewage pump, separates the drive motor from the pump system, combines the mixing system with the pump system , and uses a large-diameter, low-speed impeller. The belt drive is combined with a unique diaphragm coupling to significantly reduce the vibration of the drive shaft when the pump impeller and the mixing impeller cut the dirt, and extend the service life of the bearings and seals ; the advantages of low-speed transmission are also obvious.
Technical parameters:
Used to transport high-concentration cow dung, the maximum diameter of the medium particles is about 2~45 mm Flow rate up to 250 cubic meters per hour, head up to 15 meters Motor power 30 ~ 45 kW Stainless steel level controller The outlet pipe is connected with DN200 flange Specification

category model	Rated flow (m3/h)	Rated head (m)	Motor power (KW)	Appearance parameters Length*width*height(mm)	Reference weight (KG)
FHB30-150-9A	150	9	30	1211*1363*4980	842
FHB30-150-11A	150	11	30	1211*1363*4980	856
FHB30-150-13A	150	13	30	1211*1363*4980	863
FHB30-150-15A	150	15	30	1211*1363*4980	870
FHB30-200-9A	200	9	30	1211*1363*4980	866
FHB30-200-11A	200	11	30	1211*1363*4980	875
FHB30-200-13A	200	13	30	1211*1363*4980	880
FHB37-200-15A	200	15	37	1211*1363*4980	951
FHB30-250-9A	250	9	30	1211*1363*4980	880
FHB37-250-11A	250	11	37	1211*1363*4980	950
FHB37-250-13A	250	13	37	1211*1363*4980	968
FHB37-250-15A	250	15	37	1211*1363*4980	977

Company Profile
FAQ Q1. Are you a factory or trading company?A:We are a professional and comprehensive dairy farm equipment supplier integrating R&D, production and sales. Q2.May I visit your factory?A:Sure, we warmly welcome you all pay a visit to our company. We can arrange pick ups at airport and station. Q3: Can you guarantee your quality?A: Of course. We have about 20 years experiences in this field. We have skillful production,good workmanship as well as strict QC. we put high quality on our reputation.

---
