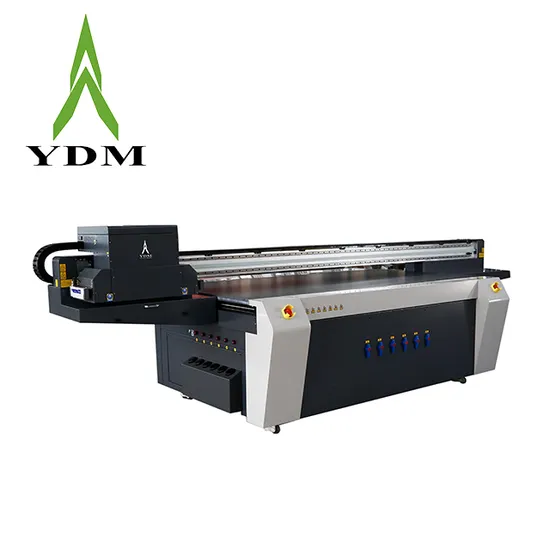

Ydm Digital Ceramic Tile Printing Machine UV Flat Bed Printer 2513

Product Description

YDM Digital ceramic tile printing machine uv flat bed printer YDM Digital ceramic tile printing machine uv flat bed printer can help you make faster printing, personalized and high resolution printing on many flatbed materials, such as Acrylic, Metal, Glass, PVC/PP board, Wooden, Phone case etc. At the same time , if you want to printing on bottles, only add a rotary attachment! YDM Digital ceramic tile printing machine uv flat bed printer has the advantages:
Japanese imported Original Ricoh G5/G5i,Toshiba CE4, Epson I3200-u1
CMYK W LC LM W and Varnish optional High quality printing adopting dual-level precision screw rod on the both sides of Y axis synchronous running(Printing error is less than 0.02 mm)
Auto height detection technology to detect print media thickness automatically
Automatic anti-static design to avoid dust ink drops flying
Advanced print head anti-crash system to avoid the risk of a collision between printer carriage and material 48-hour printing fatigue test to ensure that the printer can continue to work without uninterrupted.
Product Parameters

Technical Data	UV 2513-D series
Print Technology
Print Format	2.5 x 1.3 m
Print Height	10 cm/ 4 in ( Max. 40 cm/ 16 in )
Head Model	Ricoh G5/G5i,Toshiba CE4, Epson I3200-u1
Color set	CMYK+LM+LC+W+V, CMYK+W+V, CMYK+2W+2V, CMYK+W+CMYK
Control System	UMC/ kUNFUN/HOSON
RIP Software	Printfactory, Untiedfancy, RIprint
Print Direction	Uni/ Bi-directional ; Front/ Rear Alternative
Application	Sign & Graphics Decoration & Construction Materials Industrial flagship Model, Designed or Batch production
Print Speed	Production mode: 18-25 sqm/h Quality mode: 15-18 sqm/h High resolution mode: 12-15 sqm/h
Machine Highlight
Heavy Duty Frame	Strengthened aluminum beam + Thicken steel base
Driving Mode	HIWIN linear rail + Servo motor + Lead screw + IGUS drag chain
Protective Device	Anti-collision + Static eliminator
Work Table	Anodized aluminum table + Independent vacuum control
Ink System	Negative pressure Ink supply + White Ink stirring and circulation
Curing System	Imported UV lamp, 30000 hours lifespan
Height Detection	Automatic sensor
Others
Print Media	Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc
PC Configuration	Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G
Signal Transmission	Optical Fiber + USB 3.0
Color Control	Comply with ICC standards, with curve and density adjustment function
File Format	TIFF/ JPEG/ POSTSCRIPT3/ PDF
Power Supply	AC220V,50/ 60HZ
Working Power	4.5 KW
Noise	Standby < 32 dB ; Working < 65 dB
Machine Size	4.6mx 2.0 m x 1.45 m
Net Weight	1200KG

Highlights
Application
About US
Established in 2005, YDM(short for YICAI digital machinery ) is a professional manufacturer of digital printing machinery in China ,officially verified by CE/SGE/BV. To meet customers' demands, YDM was always committed to machine innovation, optimize printing solutions and improve service.
At the same time, we have established YDM, FOCUS to attend global competition, and our machinery have been exported to USA, RUSSIA,INDIA, FRANCE ,TURKEY,MALAYSIA ect more than 50 countries.YDM has helped more than 1000 customers engaged in high-end digital printing industry.
"Precision, Efficiency, Stabil
ity"is the best praise from customer, we hope everyone will have best printing experience and make good profit .
YDM will keep working for the upgrade of global printing industry
Main business scope:
Industrial UV flatbed printer
Small format UV flatbed printer
Eco-solvent Inkjet printer
Large format UV Inkjet printer
Heavy duty Roll to Roll UV printer
Automatic CNC router
Other Printing machinery Certifiacte
Our Exhibition

Our Services

---
