| US$3,000.00 | 1 set (MOQ) |

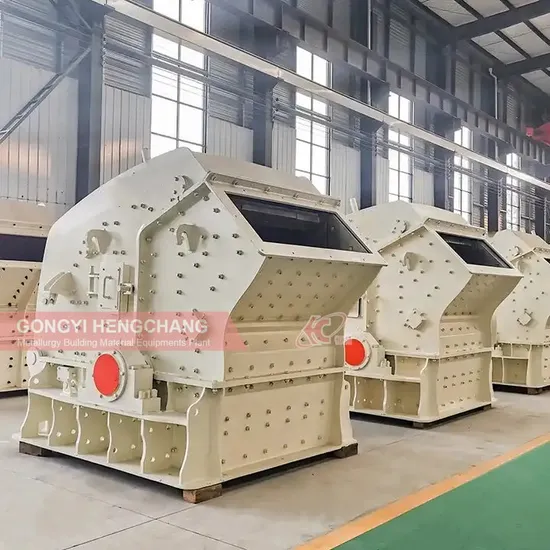

| mobile mining machinery impact basalt crusher machine price |
| Impact crusher is an important equipment for secondary crushing. It is widely used in mining, transportation, construction and chemical industry. PF series impact crusher can crushing many different kinds of materials strength less than 360 Mpa, such as limestone, gypsum, concrete, etc. Impact crushers are utilized in aggregates production, mining operations, as well as in recycling applications. Depending on the type of an impact crusher, they are known for either high reduction ratios or capabilities to produce precisely shaped, cubical end products. Impact crushers can be used in all different stages of size reduction from primary crushing to the last step of the crushing process. |
| Impact crusher can crushing many different kinds of materials strength less than 360 Mpa, such as limestone, gypsum, concrete, etc. Widely used in mining, sand and gravel, water conservancy and hydropower, highway, railway, chemical industry, building materials and other industries in the crushing and plastic the machine has a simple structure, no key connection, unique counter lining, high efficiency and energy saving, the product is cubic, the size of the particile size can be adjusted, the crushing process can be simplified, and the production cost can be saved. |
| It has a big feeding opening, high crushing chamber, high adaptability of the material hardness and a small number of stone powders. |
| The gap between the impacting plate and the plate hammer is convenient to adjust so that it can effectively control the discharging granularity and the particle shape is good. |
| It has a compact structure and strong rigidness, and the rotor has big rotational inertia. It adopts high chromium plate so that it has shock resistance, abrasion resistance, and big impacting force. |
| It adopts no key links so that it is convenient for maintenance and repair, and it is economical and reliable. |
| This machine used impact energy to crush the raw material. When the material comes to zone of action of hammer plate, material will be pushed to impact device to be crushed under the force of impact, then the material will bounce back to zone of action to be re-crushed, this process would not discharged from bottom of machine. Adjusting the gap between impact rack and rotor rack could change the output size and shape of material. |
| Model | Specification | Feeding Port Size (mm) | Max. Processing Size (mm) | Capacity (t/h) | Modelof Motor | Power (kw) |
| PF-1007 | φ1000×700 | 400×730 | ≤250 | 15-60 | Y250M-6 | 37 |
| PF-1010 | φ1000×1050 | 400×1080 | ≤300 | 50-90 | Y315S-6 | 75 |
| PF-1210 | φ1250×1050 | 400×1080 | ≤300 | 70-130 | Y315L1-6 | 110 |
| PF-1212 | φ1250×1200 | 400×1250 | ≤300 | 70-140 | Y315L2-6 | 132 |
| PF-1214 | φ1250×1400 | 400×1430 | ≤300 | 90-180 | Y315L2-6 | 132 |
| PF-1315 | φ1300×1500 | 680×1520 | ≤350 | 120-250 | Y2-355M2-6 | 200 |
| PF-1320 | φ1300×2000 | 680×1570 | ≤500 | 160-350 | Y2-355M2-6 | 280 |
| PFV-1010 | φ1000×1050 | 400×1030 | ≤200 | 35-60 | Y315S-6 | 75 |
| PFV-1210 | φ1250×1050 | 570×1030 | ≤250 | 70-140 | Y315L1-6 | 110 |
| PFV-1214 | φ1250×1400 | 570×1430 | ≤250 | 90-190 | Y315L2-6 | 160 |
| PFV-1315 | φ1300×1500 | 625×1530 | ≤300 | 150-280 | Y2-355M2-6 | 200 |
| PFV-1380 | φ1300×1800 | 625×1830 | ≤300 | 220-350 | Y2-355M2-6 | 250 |
| PFV-1415 | φ1400×1500 | 800×1530 | ≤300 | 280-350 | Y2-355M2-6 | 250 |
| Hengchang is a company integrating industry and trade. Its main business is the sale of jaw crushers, drying equipment, and mineral processing equipment. We have our own factory, professional production team, quality control team, 10 years of export experience and many loyal customers. We have experience in exporting products to Southeast Asia, Australia, Europe, South America and Africa, and have gained a good reputation. At the same time, our excellent product quality and best service have won the trust of customers all over the world. Many of our products have obtained CE certification, and most of our partner factories have ISO9001 and IEC certifications. Some have also obtained certification. We believe that our company is your good choice, because we respond quickly to your enquiry, and we will reply you within 4 hours. Our experienced English-speaking trading staff will listen to your requirements and choose the right products for your market according to your requirements. |
| Before-sale services: We guide customers to choose the best and applicable device; provide the advanced, energy-saving and practical technological processes, as well as we are responsible for the planning and design of the site. Sale services: Products must be inspected strictly before being sold; customers are invited to simulate and test machine on-the-spot and raise objections; in accordance with the agreements stipulated in the contract, we will arrange delivery. After-sale services: Our Company will send professional engineers to guide device installation, debug and train operators until customers are fully satisfied. Moreover, we will design and produce machines according to the special requirements of customers. Solemn Promise: The quality guarantee period of machines is one year except the wearing parts. Tips: The prices in the web only to be reference,according to raw material's price fluctuations; Specific price is subject to the negotiation. |
| Packaging Details:Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below: Nude packing. Bundle packing. Grass rope packing. Water proof packing. Wooden pallets packing. Wooden box or carton box packing.Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days. |
| Q:Why we believe in Gongyi Hengchang company?A: 1.More than 28 years' experience. 2.Hengchang is the leading professional supplier of solution, equipment's and service for crushing and grinding industry. 3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.Q:Deliver time ?A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.Q:Payment terms ?A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.Q:What will you do if the machine is broken down?A:The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.Q:What should i do if I want to get a best quotation?A:If you want a suitable type for you, please let us know your material and capacity. |
