Side Loader Forklifts 2 Ton 3 Ton Articulated Forklift Narrow Aisle Forklifts for Sale

Product Description

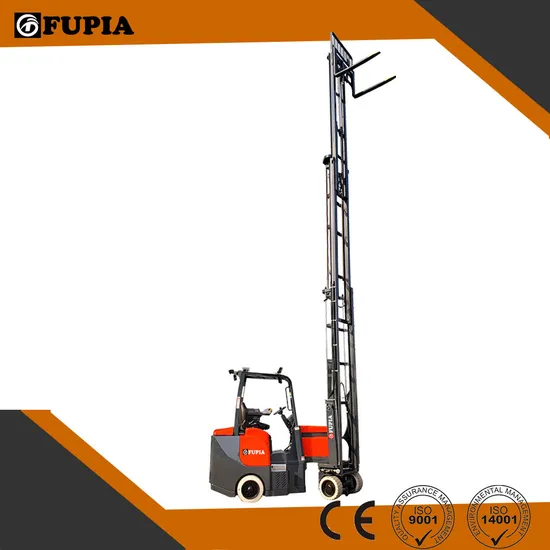

Product Description FUPIA VNA articulated truck lifts to heights up to 12.5m with max. load capacity reach to 3ton. The ultra-narrow 1.9m wide chassis and 210° articulated rotation combine with true four-wheel stability. Fast, safe operation, in a tight footprint. Plus 80V full AC technology guarantees low energy consumption and maintenance costs.What's more, by using the one truck, users can increase productivity and eliminate time-consuming double handling and speed up "truck to rack" operations.
With the FUPIA VNA forklift you can create up to 50% more warehouse capacity.
- With greater reach and capacity, it can lifts up to 12.5m, offers VNA operation in aisle-widths of just 2 m and has impressive load/lift capacity of up to 3.0t, increasing warehouse storage by 50% and lowering costs.
- The forklift with 210 degree articulated angle with flexible working in the ultra-narrow channel. The full AC system provides a more efficient performance, stronger power and free maintenance.
- easy operation
- The electro-hydraulic proportional valve, valve speed can be adjusted according to the will, making it easier and more accurate to pick up and offloading the goods.
- Optional finger tip control provides better control experience, more flexible and accurate operation. It provides special picking mode which is easy to operate. With better micro performance it is very suitable for high lifting handling working condition.
Product Parameters

General	1	Brand		FUPIA
	2	Model		FBJ15	FBJ20
	3	Power Type		Electric
	4	Rated Load Capacity	kg	1500	2000
	5	Load Centre	mm	600
Characteristic & Dimension	6	Lifting Height	mm	6650	9450
	7	Free Lift Height	mm	2215	3435
	8	Mast Closed Height	mm	3115	4315
	9	Mast Extended Height	mm	7911	10691
	10	Overall Length	mm	2780
	11	Rear Chassis Width	mm	1030	1270
	12	Front Chassis Width	mm	980
	13	Seat Height	mm	1220
	14	Mast Tilt Angle (F/R, α°/β°)	deg	1°/3°
	15	Ground Clearance	mm	50
	16	Overhead Guard Height	H5(mm)	2270
	17	Aisle Width	mm	1900
Performance	18	Travel Speed	km/h	16
	19	Lifting Speed (Full Load/ No Load)	mm/sec	440/500
	20	Max.Gradeability (Full Load/No Load)	%	18/20
Chassis	21	Tyre (Front)	mm	412x174
	22	Tyre (Rear)	mm	457x150
	23	Wheel Base	mm	1745
Weight	24	Weight ( exclude battery )	kg	5150	5310
	25	Weight ( include battery )	kg	6400	6900
Power	26	Battery	V/Ah	80/400	48/900
	27	Controller		ZAPI/CURTIS
	28	Traction Motor	kw	AC 19.5
	29	Lifting Motor	kw	AC 15
