Li-Battery Electrolyte Leakage Monitoring Sensor ATRS-1050

Product Details

Product Description

Product Description
Introduction

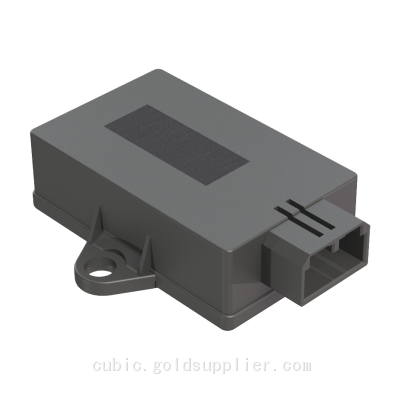

Cubic ATRS-1050 is a lithium-ion battery electrolyte leakage sensor based on non-dispersive infrared (NDIR) technology, specifically designed for the efficient detection of DMC, EMC, and EC vapor leaks. ATRS-1050 can continuously monitor the electrolyte leaks in the battery and promptly generate alarm signals to implement effective safety warning strategies.
ATRS-1050 features early detection, low power consumption, less cross interference with other gases, long lifespan, can be widely used for thermal runaway monitoring in electric vehicles, battery energy storage systems, and gas leak detection during the battery manufacturing process, providing an effective solution for the safety monitoring.
Features
1. Early detection of thermal runaway event
2. Fast response time (<1s)
3. Less cross interference with other gases
4. Low power consumption
Specifications

Detection Category	Electrolyte vapor: DMC, EMC, EC
Operating Principle	NDIR (Non-dispersive Infrared)
Measurement Range	0~10000ppm
Measurement Accuracy	0~2000ppm: ±200ppm2000ppm~10000ppm: ±10% of reading
Response Time		Average Working Current	Normal Working Mode: ≤30mALow Power Mode: ≤240μA
Lifetime	≥10 years
Working Condition	-40 ~ +85℃; 0~95%RH (non-condensing)
Storage Condition	-40 ~ +95℃; 0~95%RH (non-condensing)
Power Supply	6V~32VDC (Rated voltage+12VDC)
Communication	CAN

---
