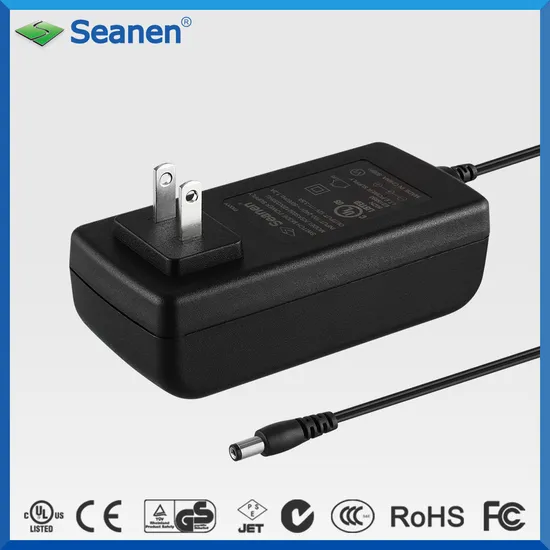

18V DC Power Adapter

Product Description

18V DC Power Adapter
Adapter Description:

Input	Input voltage	90-264VAC
	Frequency range	47-63Hz
	leakage current	0.25mA max
	Power consumption (no loading)	0.1W Max
	Energy efficiency	DOE VI, COC Tire 2
Output	Voltage	Available from 5VDC to 24VDC
	Current	Available from 50mA to 6A
	Power	50W Max
	Load regulation	+/-5%
	Hold-up time	7ms minimun at 115V AC / full load
Connector	DC cable	2468 2C 6FT or others
	DC plug	Per customer request
Protections	Short circuit protection	Yes
	Over voltage protection	Yes
	Over current protection	Yes
Envionmental requirements	Operating Temperature	0-40°C
	Storage Temperature	-25°C+80°C
	Operating Relative humidity	10-90% RH
Others	MTBF	50K hours at 25'C
	Led indicator	/
	Size	115*52*53.5mm (L*W*H)
Safety Approvals	UL/cUL/GS/CE/UKCA/CB/C-TICK/CCC/PSE/EMC
Standards	UL60950-1,IEC/EN62368-1,AS/NZS60950-1,J62368,FCC part 15 class B
Compliance	RoHS, PAHS, REACH, WEEE

Feature:
1) High quality, High efficiency, extra safe design
2) I/P: 100-240VAC 50/60Hz, O/P: 5-24V, 0.1-6A, 50W
3) RoHS, REACH, PAHs, CEC VI compliant
4) UL, GS, CE,UKCA, C-TICK, PSE, FCC approved
Protections
1) Short circuit protection
2) Over voltage protection
3) Over current protection
Envionmental requirements
1) Operating Temperature: 0-40oC
2) Storage Temperature: -20-80oC
3) Operating Relative humidity: 10-90% RH

Company Brief Introduction:
Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability ,cost effective and environment-friendly.
Our standard products cover the full range items, from 0.5W to 120W output power, safety approved including UL/cUL, TUV-GS, CE, UKCA, C-TICK, PSE, K-mark, CCC, EMC and FCC etc.
compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
we can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.
FAQ
1. Are your products compliant with efficiency level VI ?
A: Yes, our products are compliant with USA DoE VI, and EU CoC Tier2 as well.
2. Are your products compliant with RoHS ?
A: Yes, all of our products are compliant with RoHS, also REACH and PAHs.
3. Can I get a couple of samples?
A: Of course you are welcomed to get samples for free.
4.What's the MOQ you accept?
A: MOQ is 2,000pcs.
5. What are the advantages of your products?
A: Our products have reliable quality with completed certifications and on time delivery. Besides, our integral manufacture (e.g.moulding, plastic injection, metals and cables making etc) can ensure our competitive price.

---
