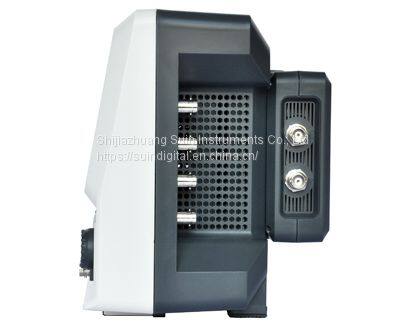

TFG6800 Series 35MHz/65MHz/100MHz Arbitrary Waveform Generator,2-CH
Overview
With frequencies up to 100 MHz, 16Bit Resolution, and arbitrary waveforms of up to 16 Mpts, the TFG6800 series products can reproduce any waveform with high quality. The new portable design and optional power amplifier make this one of the most flexible and popular generators on the market.
Product Model
TFG6803/TFG6806/TFG6810
Suin Dual Channel Waveform Generator Specifiations

		TFG6803	TFG6806	TFG6810
Frequency
Sine/Square		1μHz-35MHz	1μHz-65MHz	1μHz-100MHz
Pulse		1μHz-25MHz
Ramp		1μHz-3MHz
PRBS		1kbps~60Mbps
Noise (-3dB)		100MHz Width
Other		1μHz~20MHz
Resolution		1μHz or 12 digits
Accuracy		±(20ppm + 14pHz)
Waveform
Type		165 kinds include: Sine, Square, Ramp, Pulse, Noise, DC, PRBS, user-defined,Arbitrary waveform, user-defined harmonic, etc
Sample rate		250MSa/s
Vertical resolution		16 bits
Arbitrary	Sample Rate	1μSa/s~125MSa/s
	Length	2-16Mpts
	Resolution	16 bits
Square	Rise/Fall Time	≤4.2ns
	Duty Cycle	0.0001%~99.9999%
Pulse	Rise/Fall Time	≥8ns
	Width	13ns ~ (period - 13ns)
Amplitude(High Z)
Range		2mVpp~20Vpp, frequency≤10MHz 2mVpp~10Vpp, frequency>10MHz
Resolution		1mVpp or 4digits
Accuracy		±(of settings value×1%＋1mV), Sine 1kHz, ≥10mVpp, offset 0V
Offset(High Z)
Range		±10Vpk(ac＋dc)
Resolution		1mVdc
Accuracy		±(|setting value|×1%＋2mV＋amplitude value ×0.5%)
Sweep
Range		1μHz ~ upper frequency limit
Type		Linear, logarithmic
Time		1ms to 500s
Modulation
FM,AM,PM, PWM, Sum	Carrier Waveform	Sine, Square, Ramp (only pulse for PWM), etc.
	Modulating Waveform	Sine, Square, Ramp, etc.
	Modulating Frequency	1mHz to 100kHz
FSK,4FSK, NFSK,PSK, 4PSK,NPSK, ASK,OSK	Carrier Waveform	Sine, Square, Ramp, ect
	Hop Frequency	1μHz -upper limits
	Hop Rate	1mHz to 1MHz
Burst
Mode		Triggered, Gated
Period		1μs to 600s
Count		1 to 100000000 cycles
Counter
Frequency Range		1mHz to 350MHz(DC Couple) 10Hz to 350MHz(AC Couple)
Resolution		8 digits/s
Period and Pulse Width Measurement		100ns to 20s
Duty Cycle Measurement		0.1% to 99.9%
General Characteristic
Power		AC 100~240V, 50/60Hz ±10%
		AC 100~120V, 400Hz ±10%
Dimension & Weight		226mm×200mm×125mm, Approx. 2.9kg
		226mm×200mm×166mm, Approx. 3.3kg (if amplifier power is selected)

Standard Accessories
Power Cord:1pcs
BNC cable:1pcs
CD(software+manual):1pcs
Options
TCXO(Temperature Compensated Crystal Osillator):±1ppm accuracy,±1ppm/year aging rate
Power Amplifer:2 times power amplifer,Max output power 8W(8Ω)
IOT interface:Based on LoRa
