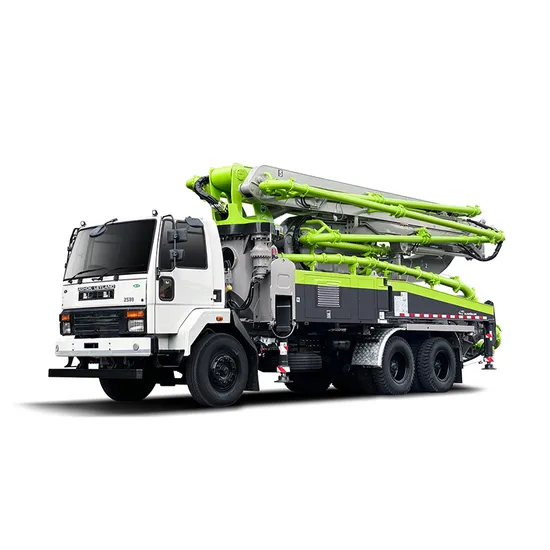

38m Concrete Truck Mounted Pumps Two-Axles 38X-5rz

Product Description

38m Concrete Truck Mounted Pumps Two-Axles 38X-5rz
Product Description
Zoomlion has invested a lot of time and money in the research of composite technology, which has been successfully applied to the long boom series concrete pump trucks, establishing Zoomlion's position as a world leader in the concrete pump truck industry.
We use PRO/E, ANSYS, ADMAS, IDEAS and other advanced software to analyze the kinematics, dynamics and finite element structure of the boom, bottom frame, leg, etc., so that the stress distribution tends to be the most reasonable.
According to the calculation results, we make a comprehensive adjustment to ensure that the boom system structure is reasonable and the performance is excellent. With large production plant, high precision processing equipment and high quality, high skilled staff; With horizontal machining center, CNC double-sided boring machine, CNC floor boring and milling machine and other high-grade processing equipment; With advanced parts precoating line and machine coating line; With the particle size counter to control the cleanliness of the system, to ensure the cleanliness of the hydraulic system requirements; With CNC bending machine, underwater plasma cutting machine, automatic welding machine, three coordinate marking machine, ultrasonic flaw detector and other advanced equipment, to ensure the quality of structural parts manufacturing.
Product Parameters

Condition	New
Power Type	Diesel
Place of Origin	China
Weight	23000kg
Warranty	1 year
UNIQUE SELLING POINT	High operating efficiency
Max. vertical conveying distance	37.1m
Max. horizontal conveying distance	32.4m
Productivity	125/75M³/H
Model	ZLJ5230THBKF 38X-5RZ
rated working pressure	35MPa
Pumping concrete pressure	8/13MPa
The cloth rod can reach a height	42.3m
The cloth rod can reach depth	29.7m
Turning radius of cloth rod	37.7m
Turning Angle of fabric rod	360°
