Rotary Angle Encoder and Remote Display, with a 6mm Diameter Shaft. Angle Tilt Inclinometer.
US$32.85
1-19 Pieces
US$31.86
20-99 Pieces
US$28.70
100+ Pieces
Basic Info.
Model NO.
ME-AN-REM-ROT
Measurement Object
Tilt
Range
0-360 Degrees
Resolution
+/-0.1 Degrees
Precision
+/-0.1 Degrees
Measure Method
Automatic
Accuracy
A
Precision Measuring Device
Precision Measuring Device
Certification
CE, RoHS
Customized
Non-Customized
Transport Package
Box
Specification
Weight (grams): 220.0000
Trademark
Machine-DRO
Origin
China
Production Capacity
500000
Product Description

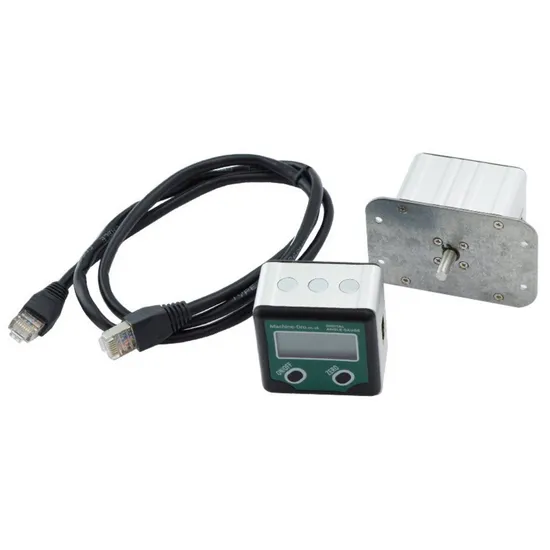

Details The remote display has the on/off button and a zero function button allowing the display to be set to zero degrees in any position. The rotary encoder has a flat steel flange with four mounting holes and 6mm diameter shaft. The Display is linked to the rotary encoder by a standard RJ45 cable. This allows the display and encoder to be disconnected. A 900mm cable is included The gauge is powered by a standard CR2032 battery located behind a twist lock compartment on the rear of the display We would recommend that 5 metres is the maximum cable length when using the Angle Tilt Sensor/Inclinometer. Cables can be extended to 5 metres but please note that this must be a RJ45 Cat 5 lead that is screened. If not not there may be interference issues Please Note: The rotary encoder must not be used at high speed/rpm. Protect encoder from coolant and moisture ingress Applications Include: Rotary tables, Dividing heads, Angle table, Telescopes, Tilting angle plates, Milling machine head angle etc Range: 0-360 degrees (360 degrees displays as 0.0 degrees and will continue to count up) Accuracy - +/-0.1 degrees
