Optical Fiber Plug-in Insert Sc FC Fiber Optic Splitter

Product Description

Product Description

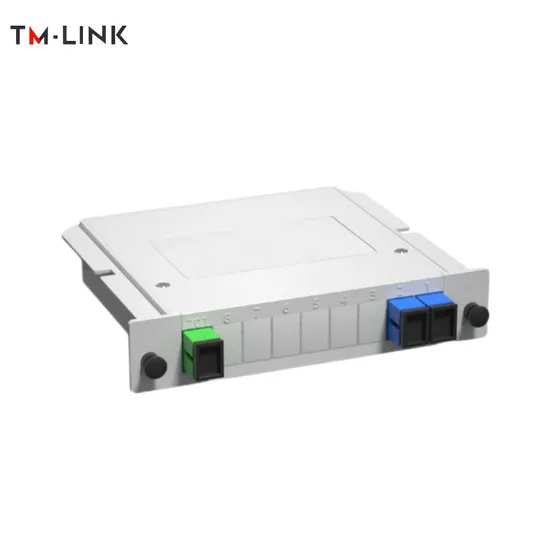

Plug-in insert optical splitter (UPC)
Plug-in insert optical splitter:1/2 1/4 1/8 1/16 1/32 1/64 1/32(horizontal)1/32(vertical)

Product name	Plug-in insert optical splitter (UPC)	1/2 loss	≤3.5dB
Core number	1/2 1/4 1/8 1/16 1/32 1/64	1/4 loss	≤7.5dB
Unit type	SC(UPC)	1/8 loss	≤10.5dB
Operating wavelength	1260-1650nm	1/16 loss	≤13.5dB
Equipment characteristics	Low insertion loss and large return loss	1/32 loss	≤17.5dB
Working temperature	-20ºC~85ºC	1/64 loss	≤20.5dB
Redial loss	≥55dB	Working humidity	5%~95% (No condensation)

Plug-in insert optical splitter is a device for an optical fiber network system that can input optical signals evenly into multiple exits from a single or double inlet, or reverse work to transfer multiple optical signals into a single or double optical fiber. Here is a detailed introduction of the insert optical splitter: Composition and structure: The insert optical separator is mainly composed of insert and adapter, which is composed of three parts of optical cable, optical fiber array and optical cable. The plug-in insert optical splitter is made of semiconductor process (lithography, corrosion, development, etc.). The optical waveguide array is located on the upper surface of the chip, and the separation function is integrated on the chip, that is, 1 and 1 division are realized on one chip. Then, the multi-channel fiber array is coupled to the input and the output of the chip. Working principle: The working principle of the plug-in insert optical splitter is when the input optical signal is converted into the electrical signal (DC voltage), and then output to the display instrument; and the signal of the electrical signal into optic is completed by the optical part. The optic source is mainly composed of optic emitting diode and laser diode; the reflection plate is mainly used to refract the incoming parallel beam or reflect the desired beam to the measured object. The optical splitter is the key component of the whole system. Its main function is to divide the optic waves from different frequencies of the emitter into different wavelength components and send them into the corresponding detection unit for detection. The function of the fiber connector is to connect a single fiber of the input terminal with multiple fibers of the output port to form a complete communication link. Features and advantages:The plug-in insert optical splitter has the characteristics of small size, wide working wavelength range, high reliability, good spectral uniformity, etc. It is especially suitable for passive optical network (EPON, BPON, GPON, etc.) to connect the local terminal and terminal equipment and realize the separation of optical signal. Company Profile TM-LINK Specializes in the production and customization of products in the network communication and precision manufacturing fields.TM-LINK with 20 Years of production research and development experience, strong technical team, ability to the greatest extent to meet the needs of customization, understand what you need, efficient communication, fast customized production. All kinds of complete qualifications, ISO9001 production system, products to provide all the local market required certification materials, fully ensure the quality of product safety and reliability.Welcome to call, email, WhatsApp and other ways to contact TM-LINK, we take customer satisfaction as the first purpose, look forward to working with you.
FAQ Q. How long can I get the feedbacks after we sent the inquiry? We will reply you within 24 hours in working day.Q. Are you a direct manufacturer or trading company?We are a professional manufacturer with more than 20 history. The factory is in Ningbo city.Q. What products can you offer?We are specializing in the production and customization of Fiber Optic Equipments, Lan Network Equipments, Base Station Telecom Equipments applications in the network communication fields.Q. What applications do your products relate to?Our products cover a wide range of network telecommunication and Precision Manufacturing Service fields.Q. Can you do customized products?Yes,we are mainly doing customized products according to the customers' drawings or samples.Q. How many employees of your comany?what about the technicists?We now have more than 500 employees, including 17 engineers and 29 technicians.Q. What's the payment term?We offer the price to customer with different shipping term, like FOB Ningbo, CIF and so on.For the payment terms, usually it is T/T, 30% deposit and balance before the shipment.Q. How to deliver the goods to us?Usually we will ship the goods to you by sea,because we are in ningbo,and we are only 15 kilometers away from the ningbo port,it is very convenient and efficient to ship goods to any other countries.of course,if your goods are very urgent,the ningbo airport and shanghai airport are also very nearby.Q. Where are your products mainly exported to?Our main market is in Europe and USA.We have much confidence to say that our products and service will make you and your customers satisfied.

---
