Sunward 6 Ton Crawler Excavator Swe60UF Small Hydraulic Digger with EPA CE

Product Description

Product Description

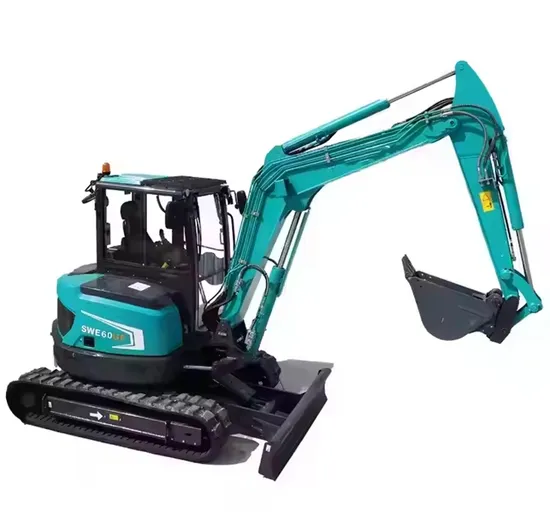

The SWE60UF is a compact excavator featuring a zero-tail swing. Thanks to its design, the SWE 60UF can offer great power at a reduced footprint, giving it the ability to fit into smaller spaces than other similar products. It combines the power of the engine, delivering 36.5 kW, with incredible precision thanks to the dual proportional joysticks and the perfectly fitted hydraulic flow. Its exceptional digging reach performance means no worksite is off-limits.
Excavators feature attractive appearance, excellent performance, user-friendly operation, easy maintenance and internationally advanced performance indicators, and are exported to more than 60 countries and regions, including Europe and USA.*Compact and FlexibleThe zero-tail swing frame is easy and comfortable in the wall-side construction and perfectly performs corner construction with the deflection of the working device.*Well-equipped auxiliary pipelineThe standard auxiliary pipeline and hydraulic quick hitch pipeline can meet the needs of various attachments.*Powerful EngineThe use of large-displacement turbocharged engines meeting Euro III and Euro V emission standards has the advantages of unilateral maintenance, strong power, being economic and green. The optimized low speed gears matching results in higher efficiency and lower fuel consumption when the engine is operating at low speed. Product Parameters

Outline dimension (L×W×H)			5500×1980×2550 mm
Dimension parameter	A)Wheel tread		1965mm
	B)Total length of track		2495mm
	C)Ground clearance of platform		630mm
	D)Tail swing radius		1050mm
	E)Chassis width		1960mm
	F)Track width		400mm
	G)Ground clearance of chassis		318mm
	H)Track height		594mm
	I)Total length		5498mm
	J)Cab roof height		2550mm
	K)Width of cab		1830mm
Working range	a)Max.digging height		5615mm
	b)Max. unloading height		3950mm
	c)Max. digging depth		3710mm
	d)Max. vertical digging depth		3050mm
	e)Max. digging reach		6230mm
	f)Max. digging reach on theshutdown plane		6105mm
	g)Max. blade lifting height		455mm
	h)Max. blade digging depth		415mm
	r)Min. slewing radius		2640mm
	Dozer blade (L×W)		1960×340 mm
Machine weight	Rubber track		5.63t
	Steel track		5.7t
Bucket capacity			0.18m³
Bucket digging force			46.8kN
Arm digging force			31.1kN
Max. traction			48.9kN
Boom swing angle (Left / Right)			70°/50°
Traveling speed			4.07/2.43 km/h
Gradeability			35°
Ground specific pressure			31.5kPa
Swing speed			9.4rpm
Engine	Brand		KUBOT A
	Model		V2607-DI-TE3B
	Type		4-cylinder, 4-stroke, water cooling
	Displacement		2.615L
	Power/Speed		36.5kW/2000rpm (gross)
			35kW/2000rpm (net)
Main pump	Type		2 variable plunger pumps
			1 gear pump
	Displacement		2×59+42 L/min
Pressure of main overflow valve			2×24.5+21 MPa
Capacity of fuel tank			70L
Capacity of hydraulic oil tank			70L

Detailed Photos
