Klt-Maa15-Imx230 V1.0 21MP Imx230 Mipi-Schnittstelle Autofokus Kameramodul

Product Description

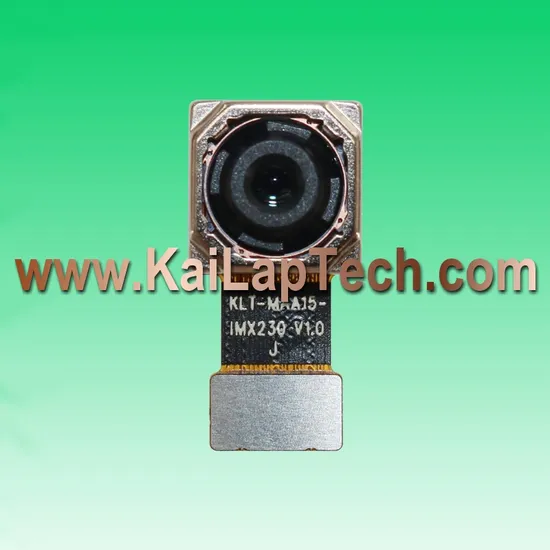

21MP IMX230 MIPI-Schnittstelle Autofokus Kameramodul
Kameramodul Nr. KLT-MAA15-IMX230 V1.0

Kameramodul Nr.	KLT-MAA15-IMX230 V1.0
Auflösung	21 MP
Bildsensor	IMX230
Sensorart	1/2.4"
Pixel Größe	1.12 um x 1.12 um
EFL	4.77 mm
F.NO	1.75
Pixel	5408 x 4112
Betrachtungswinkel	79.4°(DFOV) 66.8°(HFOV) 52.7°(VFOV)
Linsenabmessungen	10.80 x 10.80 x 6.70 mm
Modulgröße	22.00 x 10.80 mm
Modultyp	Autofokus
Schnittstelle	MIPI
Autofokus-VCM-Treiber-IC	FP5510
Linsenmodell	KLT-LENS-60126A3-03
Linsentyp	650 nm IR-Schnitt
Betriebstemperatur	-20°C to +70°C
Gegenstecker	BBR43-30KB533
