Chinese Best Price CNC Pipe Threading Lathe Machine Qk CNC Turning Machine

Product Description

Chinese Best Price Cnc Pipe Threading Lathe Machine Qk Cnc Turning Machine Precision lathe over stock bed, Oil country lathe, Pipe threading lathe machine

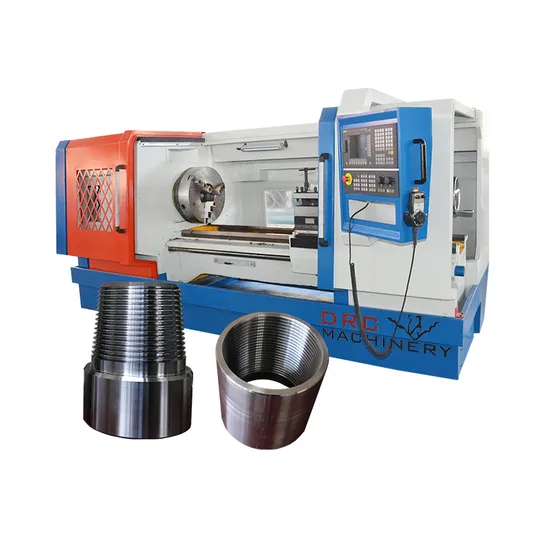

QK1313A digitally-controlled pipe-threading lathes is provided with quality and reliable digital-control operational system (which may be customized if required by the user) and a four-position electric holder to achieve horizontal/vertical AC servo control, and the main transmission is provided with mechanical variable-frequency governing(stepless) to meet different processing needs. The entire machine is provided with automatic lubricating unit and a half-closed safety enclosure, with reasonable layout and proper appearance. It may be used to mill sl/BS threads of various outer cylindrical, conical and curved surfaces, applicable to process medium/small-sized and massive production. It is best suited for parts with large diameter, long length or high accuracy. The machine is fit to process and repair drilling pipe/collar, kelly, joint and sleeve etc in the sectors of petroleum, metallurgy, geologic exploration, chemistry and hydropower etc.

Pipe Screw-Cutting Lathe Price Features:
Application:The application fields of Pipe Thread Lathe machine are the Processing and repairs of drill pipe, drill collar, joint, kelly bar and sleeve of Oil sector, Metallurgic Industry, Geological Prospecting, Chemical Industry & Hydropower.
Advantage:We use electric furnace smelting, resin sand molding casting technology,avoid sand holes, stoma casting internal defect effectively, all the accessories are assayed by imported spectrum analyzer, it assures the quality of the casting . The casting had been through second thermal aging treatment with good stability.
The bed of floor type is the whole structure. The rigidity and width of guide way on the bed of lathe is good enough. The guide way is through high-frequency quenching, the slide guide way joint SD compound soft belt. to make more wear-resisting and lower friction factor. The lead screw is the whole structure (not butt). The saddle is wider and thicker than before, the machine is running more stable. And the cutting ability is better.
Precision lathe over stock bed, Oil country lathe, Pipe threading lathe machineProduct Features of CNC pipe Thread Lathes The CNC pipe Thread Lathes,Specially Produced for pipe Thread turning is availabie for the metric and inch cylindcal pipe Thread turning and cone-shaped pipe Thread turningIt is also available for the common lathe turning,boring,interior and exterior conical surface turning, and facing.The application of this kind of lathe covers metallurgy,chemical industry, hydroel-ectric industry,and geologic industry for the process of drill pipe, drill collar,Kelly bar and ferrule, and it is suitable for the process of the oil pipe and steel pipe most.CNC pipe threading lathe Structure:Bed with high rigidity for the sturdy body and widened guide-ways ,and with long life and high precision retentiveness for the twice aging ,hardening ,and grinding.Headstock strong enough to support the heavy cutting and finish turning for the sturdy structure ,quenched and ground gears ,large spindle ,and precision heavy-duty bearings.Centralized auto lubrication.Guide-ways with TSF coated make the friction reduced and the servo performance promoted.Chuck arrangement both at front end and rear end secures the stability and reliability .CNC pipe threading lathe Standard Configuration:Domestic famous brand Guangzhou CNC systemDomestic wafangdian bearingBrand-name centralized lubricating systemDomestic brand-name electric tool postDomestic brand-name ball-screwOptional:Other CNC unit :SINUMERIK 808D / FANUC Series Oi-TF ,V6 turret, V8 turret Pneumatic(QK1313/QK1319/QK1322)///Electricchuck(QK1327/QK1335/QK1343) (with limited chucking range)Back support center post,Steady rest ,Higher accuracy than standard ,Chip removal machine

Model and specifications	QK1313A	QK1316A	QK1319A
Guideway width	460 mm
Center height	300
Max.swing over bed	600mm
Max.swing over carriage	350mm
Hole through spindle	135 mm	160mm	200mm
Max.processing Pipe diameter	400/130 mm	400/160 mm	500/200mm
Max.workpiece length	1500mm
The actual machining lengt	1300mm
CNC system	GSK980 TC3
Number of spindle speed changes	18 steps	12 steps
r/min Range of spindle speed changes	12~640	24~300
Tool post style	4
Knife rest translocation time(S)	3s
Repeated positioning accuracy	±0.001
Processing workpiece precision	IT7
Workpiece surface roughness	Ra1.6
Bed quenching hardness	HRC52
Power of main motor	11kw
Overall dimension(L×W×H)	5400/2000/2100mm
Chuck	400 3-jaw	500 3-jaw
Net weight	4500kg

---
