Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000
Bucket Digging Force
100kN
Maximum Tractive Force
82kN
Transport Package
Nude Packing
Specification
7705*2550*3200mm
Production Capacity
5000 Pieces/Year
Product Description

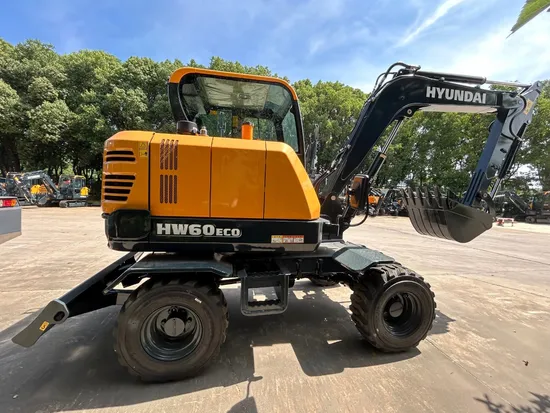

Hot Sales 15Ton Wheel ECE Approved 2 3 4 5 6Ton Mini Digger Wheel Excavator R6OWVSPRO HW60ECO
Product Description
Excellent production efficiency and fuel economy
• Equipped with engines that meet the national four-stage emission standards for non-road machinery, equipped with advanced post-processing systems, more environmentally friendly • The use of modern EPFC electronic hydraulic control system, positive and negative inertial control, fuel efficiency and handling greatly improved • Optimized main control valve to reduce pressure loss and improve fuel economy
The Eco Guidance function guides operators to form fuel-efficient driving habits
• Added remote calibration upgrade function to optimize engine performance and improve attendance efficiency Improved reliability and durability • Integrated post-processing system, safe and stable • The heat sink increases in size, improving the heat dissipation performance of the equipment and enhancing reliability • High durability dynamic path and bucket rod, improved weight, improve the durability, lifting ability and stability of equipment • Hi-Grade hydraulic hoses (greatly improved heat resistance and durability) have a 3-4 times longer life cycle than ordinary hydraulic hoses Product Parameters
Item
| Unit
| R150WVS Pro
| HW60ECO
| HW150
| HW210
| HW60
|
Operating Weight
| kg
| 13780
| 5650
| 13740
| 21920
| 5750
|
Bucket Capacity
| m³
| 0.58
| 0.18
| 0.58
| 1
| 0.21
|
Max. Travelling Speed
| km/h
| 38
| 25.7
| 39.5
| 35.5
| 29.7
|
Max. Digging Height
| mm
| 8470
| 6040
| 8500
| 10000
| 6040
|
Max. Digging Depth
| mm
| 4850
| 3465
| 4820
| 6410
| 3465
|
Dimensions
| Length
| mm
| 7820
| 9560
| 7850
| 9360
| 6120
|
Width
| mm
| 2500
| 2990
| 2510
| 2530
| 1925
|
Height
| mm
| 3140
| 3030
| 3160
| 3365
| 2880
|
Detailed Photos
