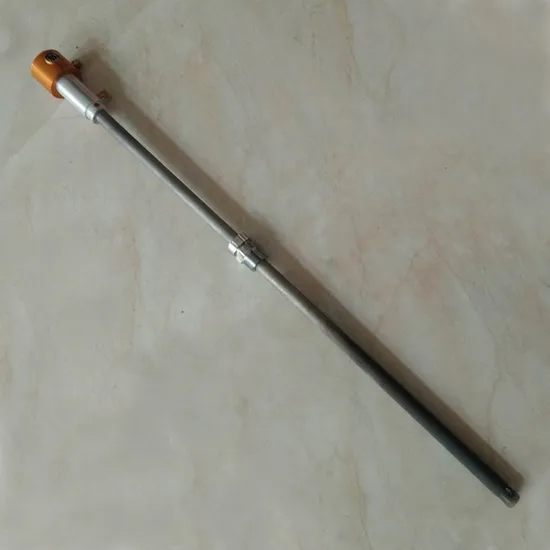

Durable Oxygen Probe Sensor for Aquatic and Industrial Applications

Product Description

Product Description Oxygen Probe Sensor

Brief	Oxygen probe sensor is an essential means for the control of carbon potential of the controlled atmosphere heat treatment. It is suitable for the heat treatment processes of carburizing, carbonitriding, annealing, protection atmosphere heating and bright quenching. Can be used in all kinds of industrial furnace, such as pit type furnace, mesh belt furnace, rotary hearth furnace and heat-absorbing gas generator.
Feature	It has good mechanical vibration and thermal shock resistance, high precision and long service life.
Guarrantee	1 year
Lifetime	More than 10 years
Delivery time	Within 15-30 working days after receipt of the down payment
Overseas Market	Southeast Asia, Middle East, Eastern Europe, North Africa, South America, etc
Payment terms	T/T, LC, Western Union.
Certifications	ISO

Product Parameters

Item	Parameters	Notes
Applicable temperature range	650-1100ºC	Application: carburizing, carbonitriding,bright quenching and annealing.,etc protect atmosphere heating.
Electric potential output range	0-1200mV	Good interchangeability: can be on-line interchanged with other types of oxygen probe.
Max response time	≤0.1s	Pre-delivery inspection: each oxygen probe need to pass the heat test before it leaves the factory, attach the thermal inspection report.
Electric potential output accuracy	±0.1mV	High reliability: adapt to mechanical and thermal shock, apply to all kinds of bad situations.
Oxygen potential interchangeability	±2mV
Carbon potential control range	0-1.5%	Quality guarantee: normal heat treatment conditions, quality guarantee period 12 months
Carbon potential control accuracy	±0.05%cp
External electrode material	0Cr25Ni20 or RA330
External electrode diameter	¢22mm or ¢25mm
Meter input impedance	≥8MΩ	Effective length:550mm,600mm,800mm,1000mm.Can also supply customizable size according to customer's needs
Internal thermocouple	K type, S type	Parts can be replaced for repair, prolong using life.

Common Specification

Model	Effective length	Built-in thermocouple	External electrode material	External electrode diameter
JH600	600mm	Without	0Cr25Ni20 or RA330	¢22mm or ¢25mm
JH600K	600mm	K
JH600S	600mm	S
JH800	800mm	Without
JH800K	800mm	K
JH800S	800mm	S
JH1000	1000mm	Without
JH1000K	1000mm	K
JH1000S	1000mm	S

Detailed Photos Please provide more information for quotation.
1.What equipment is the oxygen probe sensor used for?
2.What's the working temperature?
3.What's the length of oxygen probe sensor?

FAQ 1. Q: What is your MOQ?
A: 1 We would like to do business with every clients. No matter how many sets you order, we would try our best to meet his or her demands.
2. Q: How is your products quality?
A: We have factory in China,and have our own R&D team. And our machine has been well recognized around our clients in China, as well as by those from abroad.
3. Q: What is your application?
A: It can be used for the heat treatment processes of carburizing, carbonitriding, annealing,protect atmosphere heating and bright quenching. Can be used in all kinds of industrial furnace,such as pit type furnace, mesh belt furnace, rotary hearth furnace and heat-absorbing gas generator.
4. Q: Does your company work on OEM?
A:Yes, we have a professional design and technical team to do the customization
5. Q: What's the delivery time after the order is placed?
A: Within 15-30 working days after receipt of the down payment.
6. Q: How about the warranty?
A: 1 Year.
7. Q: What can you provide after service?
A: We provide instruction manual in English.

---
