Product Details
Product Description
Product Description
Brand:GE

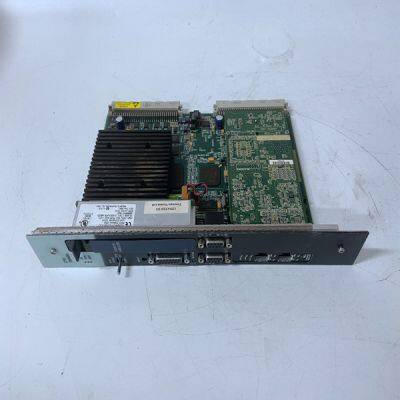

Type:IC698CPE020-CC
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Compact Flash interface which supports loading of application and cold retain data storage. Technical Data Technical data for PM851/PM856/PM860 and TP830 is described in Table 48 on page 240. Table 48. PM851/PM856/PM860 and TP830 – Technical data Item Value Memory • 2 MB flash PROM (firmware storage). • 8 MB of SDRAM. Power Dissipation 5 W typical 10 W typical (incl. full supply to ModuleBus and CEXBus, see Appendix B, Power Consumption). Current Consumption 180 mA typical (300 mA max.) (excl. supply of ModuleBus and CEX-Bus, see Appendix B, Power Consumption). Power Input Connector Four pin, screw connector L+, L–, SA and SB. Power Supply Requirements Inputs designated L+ and L– 24 V nominal, variation between 19.2V DC and 30V DC. Redundant Power Supply Status Inputs Inputs designated SA, SB • Max input voltage 30 V • Min. input voltage for high level 15 V • Max input voltage for low level 8 V These inputs are status inputs. The threshold levels are logical “0” or “1” input limits, not power fail limits. Power Reservoir The processor unit has an internal 5ms power reservoir, sufficient for the CPU to make a controlled power down. Protection Rating IP20 according to EN60529, IEC 529.
Weight • 1100 g (2.4 lb) (package PM856K01 with PM856, TP830 and bus terminations). • 1100 g (2.4 lb) (package PM860K01 with PM860, TP830 and bus terminations). Dimensions W 119 x H 186 x D 135 mm (4.7 x 7.3 x 5.3 in.) Width is measured along the DIN-rail, depth from the wall, and height vertically, including lock mechanism. Table 49. PM851/PM856/PM860 and TP830 Interfaces – Technical data Item Value CN1 and CN2 Ethernet Communication(1) Communication speed 10 Mbit/s (half duplex) Signal levels IEEE802.3, 10Base-T Connector RJ45 COM3 Serial Communication Communication speed Selectable in steps from 75 to 19200 baud. 75, 110, 134.5, 150, 300, 600, 1200, 1800, 2000, 2400, 9600, 19200 baud. Protocol specific restrictions apply. Signal levels RS-232C Connector RJ45 Modem support Yes Table 48. PM851/PM856/PM860 and TP830 – Technical data (Continued) Item Value Technical Data Appendix A Hardware Units 242 3BSE036351-510 A COM4 Serial Communication Communication speed 9600 baud Signal levels RS-232C Connector RJ45 Modem support No Electrical ModuleBus I/O capacity 1 x S800 I/O base cluster with up to 12 x S800 I/O units. Supply current • Max 24 V – 1.0 A (short circuit proof, fuse 2 A fast) • Max 5 V – 1.5 A (short circuit proof) Supply voltage variation 24 V – follows the input power at L+ Optical ModuleBus(2) I/O capacity up to 7 x S800 I/O clusters each with 12 units Connector • Duplex Fiber Optic Cable • Simplex Fiber Optic Cable CEX-Bus(3) Capacity up to 12 communication interfaces Supply current Max 24 V – 2.4 A (fuse 3.15 A fast) (1) Only (CN1) Ethernet Communication is supported for PM851. (2) Maximum one S800 I/O cluster is possible on the optical ModuleBus with PM851. (3) Maximum one communication interface on the CEX-bus is possible with PM851. Table 49. PM851/PM856/PM860 and
>>
