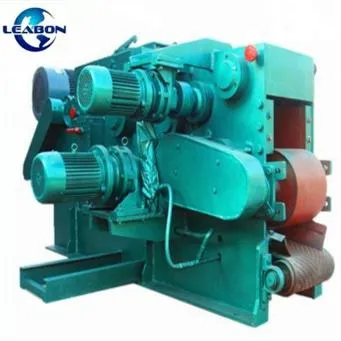

Wood Drum Chipper Machine with Feeding Belt Conveyor Wood Shredder Machine

Product Description

Wood Drum Chipper Machine with Feeding Belt Conveyor Wood Shredder Machine Product Description 1. Introduction of Drum wood chipper: It is one special equipment for high quality wood chips. It is widely used to make the flake board, fiber board, building board,straw powder plant.
The drum chipper is of compact structure, easy operation, high capacity, wide raw materials adaptability, high quality,safe and reliable,convenient maintenance.
Wood drum chipper with no need concrete-foundation 2. Structure of Drum wood chipper: The machine is made up of body, knife roller, the upper and lower feed roller,conveyor belt,hydraulic system.
The machine adopts high strength steel plate welded together, is the supporting basis of the whole machine.
Install two or three, four throwing knives in the knife roller. Using the fly-knife bolt specially manufactured to fix these fly-knives on the knife roller through the pressure block. According to different thickness of cutting materials, the upper feed roller can fluctuate within a certain range with the aid of hydraulic system. Qualified wood chips fall down through the sieve holes, and are discharged from the bottom; large wood chips will be cut within the machine. Product Parameters 3. Technical parameter of Drum wood chipper

MODEL	BX-316
Power of main motor( kw)	55
Q'T'Y of flying blades ( PCS )	4
Opener size ( mm )	540x220
Input max diameter ( mm )	200
Length of chips ( mm )	10-20
Capacity( T/h )	8-12
Dimension of main machine ( mm )	3100x2000x1500
Weight of main machine ( kg )	4680
feeding Belts conveyor (m)	6*0.55
Discharge belt conveyor(m)	10*0.6

Spare Parts 4. Spare parts of Drum wood chipper
Final Product 5. Final chips of Drum wood chipper
Can get different size wood chips with different size by using dieefent size wood chipper. Packaging & Shipping 6.Packing:
