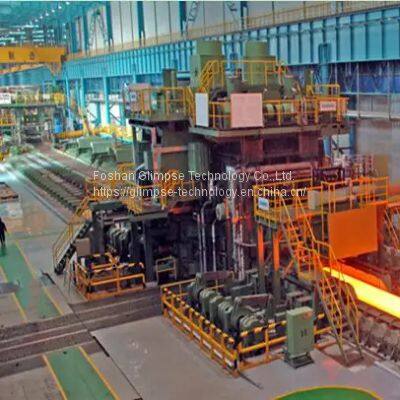

750mm stainless steel hot rolling mill GLIMPSE

Product Details

Product Description

Product Description
750mm stainless steel hot rolling mill GLIMPSE
The hot rolling mill is repeatedly rolling the billet to the specified thickness (generally less than 6.0mm) in the metal re-crystallization temperature (generally about 900 ° C), and it is wound into hot rolled steel coils.
The 750mm stainless steel hot rolling machine is the production of hot-rolled stainless steel coils. The thickness of the finished product is 2.4-6.0mm and the width is 480-600mm. The maximum annual output can reach 1 million tons (data depends on the customer's product outline).
The main technical parameters of the 750mm stainless steel hot rolling mill:
Raw materials: 200 series, 300 series, 400 series stainless steel
Blank thickness: 150mm
Blank width: 600mm
Finished product thickness: 2.4-6.0mm
Finished product width: 480-600mm
Inner diameter of steel roll: 530mm
Steel roll outer diameter: maximum 1680mm
Steel roll weight: maximum 10 tons
The process rout of 750mm stainless steel hot rolling mill:
Heating → descaling → rough rolling → fine rolling → coiling
The composition of 750mm stainless steel hot rolling mill:
1) Enter roller table
2) Steel pusher
3) Heating furnace
4) Exit roller table
5) Steel machine
6) Roller table before descaling
7) Descaling vertical mill
8) Descaling box
9) Descaling pump
10) Roller table after descaling
11) Roller table before rough rolling
12) Side guider before rough rolling
13) Rough rolling mill
14) Rough vertical mill
15) Roller table after rough rolling
16) Shear
17) Roller table after shear
18) F1E fine vertical mill
19) Fine two -roller rolling mill (F1)
20) Fine four-roller rolling mill (F2-F9)
21) Electric looper
22) Roller table after fine rolling
21) Side guider before coiler
22) CPC roller table
23) Pinch roller
24) Underground coiler
25) Unload car
750mm stainless steel hot rolling machine layout:
GLIMPSE's scope:
Hot-rolled factory planning and consultation
Design, production and supply, installation and commissioning supervision services
Operation and technical training, technical support
Keywords: hot rolling mill, hot rolling machine, hot strip mill, stainless steel hot mill

---
