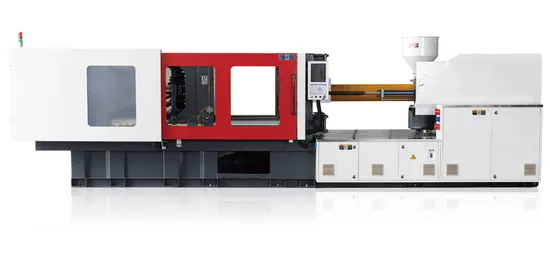

Hf-458t Thin-Wall Products High Speed Precision Injection Molding Machine

Product Description

K&E Machinery (Ningbo) Co., Ltd. presents the HF-458T High Speed Energy Saving Servo Injection Molding Machine. This high-quality machine is perfect for producing Thin-wall plastic products such as thin-wall box, fruit and vegetable baskets, and pet preforms. With its advanced technology and energy-saving features, it is an excellent choice for any injection molding needs.
Parameters:

SPECIFICATION		458
Injection Unit
Screw diameter	mm	60
Screw L/D ratio	L/D	25.8
Shot volume(theoretical)	CM3	707
Injection weight	g	643
Injection speed	mm/s	461
Injection rate	g/s	1186
Injection pressure	Bar	153
Screw speed	rpm	0-350
Clamping Unit
Clamping force	KN	4580
Open stroke	mm	605
Space between tie-bars(W*H)	mm	680*680
Max mould height	mm	680
Min mould height	mm	270
Ejector stroke	mm	100
Ejector force	KN	80
Others
System pressure	Mpa	17
Motor power servo	Kw	55+55
Heating power	Kw	33
Machine dimension(L*W*H)	M	7.6*1.9*2.2
Machine weight	Ton	18.5

Product Description Introducing the HF-458T High Speed Energy Saving Servo High Quality Injection Molding Machine by K&E Machinery (Ningbo) Co., Ltd. This injection machine is perfect for producing THIN-WALL plastic products such as THIN-WALL BOX, fruit and vegetable baskets, and pet preforms. With its energy-saving servo technology, it ensures efficient and high-speed injection molding. The machine comes with a 12-month warranty and offers engineer installation and debugging services. Get this top-quality injection molding machine for your plastic production needs.

---
