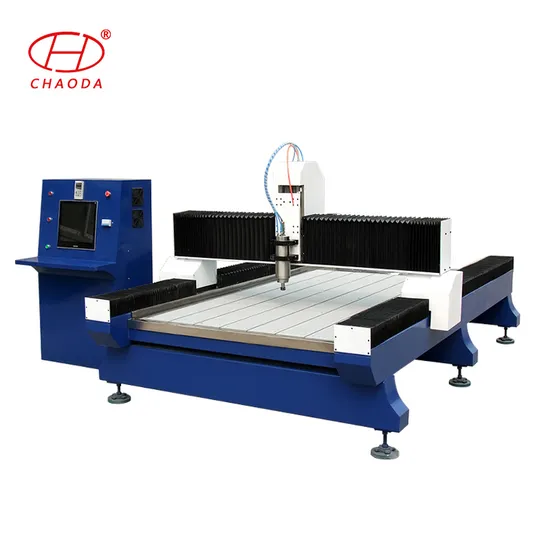

Factory Prcie! 4.5kw Spindle, 1 Head, 2 Head, 3 Head 3 Axis CNC Stone Carving and Milling Machine

Product Description

Factory Prcie! 4.5kw spindle, 1 head, 2 head, 3 head 3 axis cnc stone carving and milling machine
Features:
1.Welded lathe bed of profiled steel, stabilizing treated under high temperature
2.Y axis with double motors to drive that ensures stable and precise performance
3. With high precision rack gear transmission,with imported square linear guide rail,that ensure high accuracy,fast speed,heavy duty with long service life.
4. Professional design and high quality machine parts provides this machine with low break down rate
5. Unique double water cooling system ensured spindle cooling and cutter cooling with long working time.
6. Welded lathe bed of profiled steel, stabilizing treated under high temperature
7. All dust-proof design.
8. It not only can cut, engrave marble stones,but also can process wood foam plastics and soft metal.
Technic Specifications:

Specifiations
Model number	JCS1325
X, Y, Z working area	1300*2500*200mm
Lathe bed structure	Heavy duty Steel T-extrusion
Table surface	T-slot with clamps,with water tank
X structure	Rack and pinion, Taiwan linear square rail
Y structure	Rack and pinion, Taiwan linear square rail
Z structure	Ball screw, Taiwan linear square rail
Max.operating speed	0-55000mm/min
Max.working speed	0-25000mm/min
Spindle	4.5 kw water cooling spindle
Spindle speed	0-24000 RPM
Collet	ER20
Working mode	stepper motor and driver ( option: servo motor
Inverter	Fuling
Operating system	3 axis DSP controller
Command code	G code(*uoo,*nc,*mmg, *plt)
Oil system	yes
Running circumstance	Temperature: 0ºC~45ºC; relative humidity: 30%~75%
Weight	1950kg
Accessories	education CD,Tools,spanners,clamps,collets,water pumps

Take a Good Look at the Details:
Samples Made by This Machine:

Factory and Product Introduction:
We are factory professional produce 3 axis,4 axis,5 axis cnc machines,cnc laser,3D scanner etc.
Including all kinds of 2d,3d flat decoration products and rotary 3d sculptures,pillars,moulds etc.
Machining on wood,foam,stone,plastic,PVC,composite boards,acrylic,glass,aluminum etc.
Welcome for your inquiry and visit our factory!

Welcome to our factory!
Send your inquiry in below guide right now.
We will reply within 12 hours!
Thank you very much!

---
