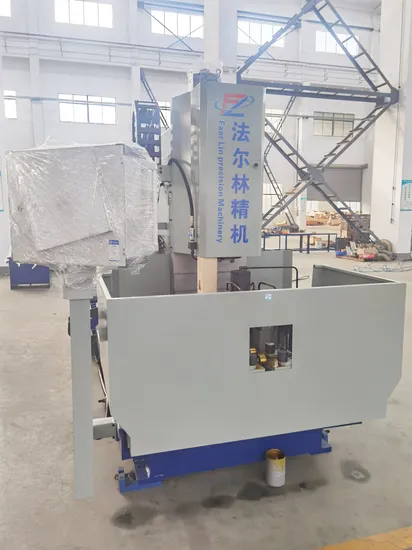

Excellent Performance Zk52 Vertical Moving Column CNC Drilling Machine for Wood Processing

Product Description

Product Description

Product Performance

Applicable product scope T75_ T127-2 Installation holes for various specifications of elevator guide rail bolts

Processing beat time Machining time of four holes at one end of T89/B guide rail is ≤ 40 "

Required area of complete equipment 3mX3m (L x W)

Air source required for starting the whole machine 0.6Mpa

Structural features

The base is made of structural parts, and the other main parts are made of high-strength cast iron and resin sand.

The column is fixed on the cross carriage, and the cross carriage moves in X direction along the longitudinal direction: the carriage moves in Y direction along the front and back; The spindle box moves up and down in Z direction.

X\Y\Z three-axis guide pairs all adopt linear rolling guide

X/Y/Z axis is driven by the AC servo motor to rotate the ball screw for working movement

The spindle structure has good rigidity and high precision. The connection between the spindle and the tool adopts mechanical quick change powerful chuck, which is convenient for tool replacement.

Cooling and chip removal: the machine tool is wet processing and adopts automatic chip removal device.

For the pneumatic valve configured for the machine tool, the clamp uses multiple force to increase the cylinder, and clamps, loosens and reverses through the air valve system. The machine tool is equipped with a programmable automatic centralized lubrication device.

Product Parameters

ITEM	UNIT	ZK5225
X axis travel	mm	200
Y axis travel	mm	200
Z axis travel	mm	400
spindle taper		BT40
Spindle speed	rpm	50-1500
Spindle motor power	kw	7.5(Ball speed regulation)
X, Y Z axis feed speed	mm/min	1-500
X-axis fast moving speed	mm/min	5000
Y Z axis fast moving speed	mm/min	3000
Positioning accuracy	mm	±0.03

Detailed Photos

Recommended products
After Sales Service
Company Profile
1.General Information
Changzhou Faer Lin Precision Machine Co., Ltd. is located in Bingjiang economic development zone, new north district, Changzhou , Jiangsu, China. The whole plant area is 30006m2 with 15000m2 construction area.
Our business grows dramatically during the past 5 years that the sales revenue develops from RMB 5 million in 2012 to RMB 50 millions around in 2016.
The company was evaluated as Jiangsu high-technology enterprise in 2015, that we have 22 high-technology products and more than 20 patented technologies.
Faer Lin is dedicated to build first-class technology developing system and train a expert team, in order to produce reliable automatic line and CNC special machine with high accuracy and high efficiency.
2.Company Team
Our shareholders and management team members are excellent talents from Jiangsu Duoleng CNC machine Co., Ltd.(Former was Changzhou General Machine Factory) who has more than ten years good experience in state-owned company management, product design, sales, R&D, manufacturing process and production. These excellent talents ensure we can have smooth and health development. Currently, we have 70 employees, 2 of them are certified with senior professional title, 21 with medium-grade professional title and 25 with junior professional title. It helps us to have capability to develop and manufacture first-class CNC machine and special machine.
We run and manage the company according to joint-stock company requirement since it was founded. We have clear and reasonable organization, which make sure our company operate efficiently and smoothly.
Certifications

FAQ
1.MOQ
1 set
2.DELIVERY TIME
It depends on the machine and model you choose.All machines are 100% new and not used.
3.How can I choose the most suitable machines?
Please tell me the machine type or parameter you are interested in, we can quote you the best price.You can also tell us the materials and size of the workpiece, or send us product pictures that you will process, we will choose the most suitable machine for you.
4.Do you provide after-sales service?
Of course. One-year warranty.
5.Are you a factory or trading company ?
We are a manufacturer factory
6.Why choose cooperate with us ?
Reliable Quality and All components from world leading suppliers ;
Cost-effective export infrastructure and total supply chain management ;
7.How does your factory do regarding quality control ?
Reliable Quality is our dignity and we do quality checking carefully such as Incoming Quality Control, In Process Quality Control, Outgoing Quality Control , Environment Control, Product Traceabitity System , Internal Audits & Calibration, Equipment Control & Maintenance, Control of Non-Conforming Materials and etc.

---
