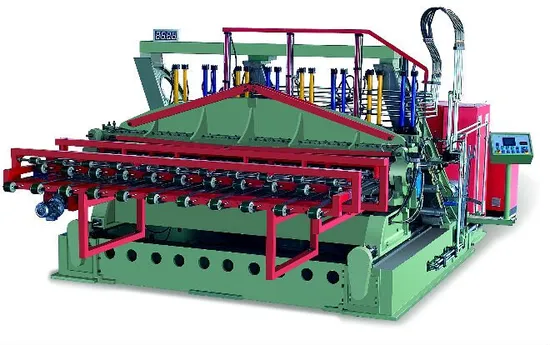

Natural Wood Veneer Slicer

Product Description

We supply Vertical veneer slicer for fancy veneer

Model	BB1342
max allowed wood size	3900x760x760mm
size of the planer tool	4200x200x19mm
slicing thickness	0.2-3mm
slicing speed	max.80pcs/min
wood clamping method	hydraulic control
Total power	75.25Kw
main motor	55kw(DC)
Hydraulic motor	11kw
knife-holder feeding motor	3.5Kw*2
circulating heat water motor	0.75kw
veneer transport motor	1.5kw
size of body(LxWxH)	7700x5800x4100mm
net weight	40T

Function
It is mainly for slicing solid wood, engineer wood and other composite board, working efficiency is high, and veneer thickness is uniform. It is widely adopt in decorative veneer of plywood, furniture, flooring, construction industry and so on.
Characteristic
1Main motor adopts direct current motor. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
8 Self lubricating center can automatically apply lubricant regularly to every moving mechanism; guarantee movement normally smoothly and precisely.
