Basic Info.
Manufacturing Technique
CNC Machining
Heating Method
Resistive Heating
Transport Package
Wooden Cases
Production Capacity
500 Sets Per Month
Product Description

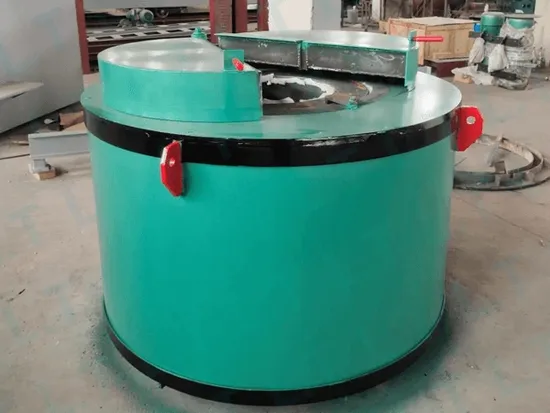

Complete equipment scope:Furnace body 1 set
Heating element 1 set
Carbon steel lead pot 1 set
Control cabinet (including electronic control components) 1 set
Thermocouple 2, compensation wire 10 meters
General drawing | 1 |
Electric furnace external wiring drawing | 1 |
Electrical schematic drawing of temperature control system | 1 |
Electric furnace instruction manual | 1 |
Electric furnace certificate | 1 |
Control cabinet instruction manual | 1 |
Supporting product instruction manual and certificate
| 1 |
Tech Data1. Rated power: 150KW
2. Rated voltage: 380V
3. Rated temperature: 700ºC
4. Number of phases: 3 phases
5. Frequency: 50HZ
6. Crucible size: φ1850×1600mm
7. Empty furnace power loss: ≤4KW
8. Empty furnace heating time: ≤2h
9. Temperature control accuracy: ≤±1ºC
10. Resistance band material: 0Cr21Al6Nb
11. Heating element connection: Y
12. Temperature control method: PID control
Operating conditions: Ambient temperature: -5ºC-40ºC Relative humidity: <80%After Sales Service
In product manufacturing, in order to enable users to understand the production progress and handle problems in a timely manner, our factory will actively cooperate with users and inform users of specific situations in writing or by phone regularly; at the equipment installation site, our factory provides free technical training for users' equipment operators so that the trained personnel can master the equipment's operating procedures. After the equipment quality assurance period, we can still provide extensive and preferential technical support and accept consultations.Our company will keep detailed and permanent archives of all resistance furnaces sold, so that we can accurately determine the possible usage problems of each customer and propose solutions.The warranty period for all resistance furnaces is 12 months (crucibles not included). After the equipment is commissioned and qualified, it enters the warranty period. During the warranty period, we will unconditionally repair and replace the fault caused by the supplier. For faults caused by other reasons, we will only charge the cost for paid repairs.After receiving notification from the user, our factory promises to respond within 24 hours, eliminate the problem in time and put it into use, and give priority to providing users with preferential, high-quality spare parts and various repair services; after the product is delivered, our company implements a designated lifelong service system for the products.
>>
