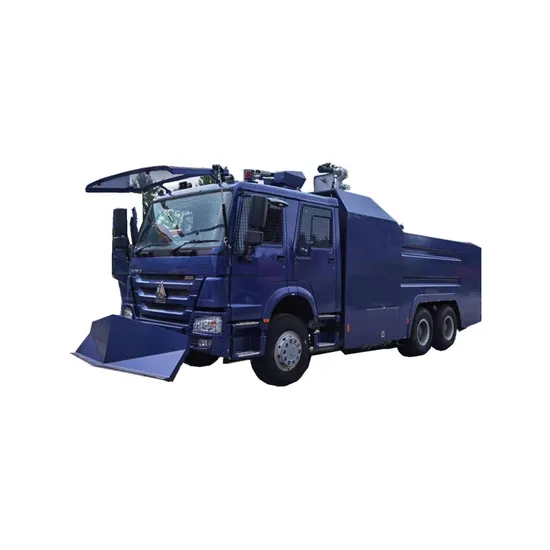

Product Description Alarm Anti riots vehicle Anti riots water cannon trucks for sale
| Anti riots water cannon system device |
| Item | Functional classification | Equipment name/model | Quantity | Remark |
|
| 1 | Chassis | SINOTRUK HOWO | 1Unit | |
| 2 | Chassis modification | Front bumper | 1set | |
| Urea tank bracket | 1set | |
| Air exhaust pipe | 1set | |
| Install water pump PTO | 1set | Sandwich full power PTO HW80Q |
| Install oil pump PTO | 1set | Transmission side power take-off HW50YC |
| Drive shaft modification | 1set | |
| 3 | Cabin modification | Modified dormant | 1set | All steel, clamshell escape sunroof |
| 4 | Upper | Water tanker | 1set | Water capacity ≥ 8m3, equipped with manholes that can quickly lock emergency opening devices, built-in vertical and horizontal anti-sway plates, equipped with overflow ports, water replenishment ports, sewage outlets, tank liquid level sensors, and special anti-rust treatment in the tank cavity |
| Bump room | 1set | Insulation cotton is attached to the inner wall of the pump room, and an antifreeze heating device is installed |
| Rear cabin | 1set | Equipped with suction tube holder and iron tool box |
| | 1set | Gas spring assist, stainless steel box lock, special stainless steel door hinge |
| Rear tow hook door | 1set | |
| Connection with chassis | 1set | |
| 5 | Water cannon | DC water cannon | 2set | Shoot range≥65m, DN80, electronically controlled pan and tilt |
| 6 | Water cannon control | Manipulate handle | 2set | |
| Control box assembly | 1set | Homemade, the control panel can be rotated and adjusted |
| Mobile control box | 1set | |
| Liquid level display panel | 1set | LED display + integrated printed circuit board |
| 7 | Waterway system | Water pump | 1set | Vehicle center mounted, medium and high pressure fire-fighting pump, 1.6Mpa, 50L/S |
| Main waterway system | 1set | National standard seamless galvanized pipe, pneumatic control stainless steel ball valve group, low temperature flexible joint, standard steel flange, manual butterfly valve, gate valve |
| Airway control system | 1set | Air storage tank, air pipeline and electromagnetic air control valve |
| 8 | Sprinkler System | Truck roof spray | 1set | |
| Undercarriage spray | 1set | |
| Skirt spray | 1set | |
| 9 | Additive Blending | Foaming agent | 1set | Stainless steel tank storage, volume 100L |
| Dye | 1set | Stainless steel tank storage, volume 100L |
| Gas liquid | 1set | Stainless steel tank storage, volume 100L |
| 10 | Circuit control | PLC | 1set | Siemens programmable controller |
| Digital Expansion Module | 1set | Siemens |
| Power box | 1set | |
| Control box | 1set | |
| 11 | Additional lamps | High headlights | 2set | 60/55W |
| Side marker lights | 6set | |
| Position light | 4set | |
| 12 | Warning system | Strobe cylindrical warning light | 4pcs | Star brand, high quality pulse xenon lamp, 25W, red and blue |
| Square alarm light | 6pcs | Star brand, imported high-brightness LED light-emitting tube, red and blue |
| Alarm host | 1pcs | Star brand,300W |
| Alarm trumpet | 2pcs | Star brand,150W |
| 13 | Surveillance system | Camera | 2pcs | Hikvision brand, Infrared All-in-One, Fixed Focus, standard definition |
| Display | 1pcs | 9 inch seat type |
| DVR | 1set | Hikvision brand, vehicle-specific shock absorption, hard disk capacity 500G |
| 14 | Reversing safety | Reversing camera | 1set | Standard definition |
| Reversing display | 1set | 7inch |
| 15 | Publicity broadcast | Car DVD | 1pcs | Card-readable, USB, single-disc playback |
| 16 | Window guard | Front windshield | 1set | Stainless steel wire mesh |
| Door side window | 1set | Stainless steel wire mesh, screwed fixed and detachable |
| 17 | Functional accessories | Engine compartment fire extinguishing | 4pcs | Aerosol,QL130-1 |
| 18 | Wrecker Shovel | Hydraulic pump | 1set | 20MPa,16ml/r |
| Multi-way valve | 1set | Double loop |
| Strong Wrecker Shovel | 1set | 4mmHigh-strength steel plate group welding, V shape |
| Hydraulic cylinder | 1set | |
| Hydraulic pipeline | 1set | Precision rolling seamless steel pipe, hydraulic control valve, Hefei Changyuan hydraulic lock |
| 19 | Body accessories | Wheel eyebrow | 1set | FRP |
| Armrest | 1set | |
| Use and operate the sticker | 1set | |
| 20 | Vehicle tools | Gas mask | 2set | |
| Iron tool box | 1set | |
| Water suction pipe | 4set | With water filter,2m |
| Fire water hose | 1set | 20m |
| Adapter | Per 1set | 65/50,80/65 |
| Other vehicle accessories | 1set | |
| 21 | Paint and lettering | Vehicle paint and stickers | 1set | Alarm Appearance Standard model |
