CE Approved SGS Tested Automatic & Manual Operation High Security Galvanized Steel Roller Shutters Door / Steel Rolling Shutter / Steel Roll up Shutter Door

Product Description

CE Approved SGS Tested Automatic High security Galvanized Steel Roller Shutters Door / rolling shutter door / roll up door | Model SG82
PRODUCT DESCRIPTIONS
Designed for long service life, low maintenance, they are ideal solution for residential,commercial and industrial applications, where security, durability,safety and cost-effective are important considerations.
APPLICATIONSConsisted of solid interlockig galvanized steel slats, with steel end clips on both sides of curtain to prevent lateral movement, this type of door is designed and widely used for industrial, commercial, residential applications as following:
♦ Factory
♦ Warehouse
♦ commercial shop fronts
♦ garage
♦ kiosk
♦ and more
KEY FEATURES♦ Security/ burglar proof
♦ Strong and durable
♦ Cost effective. Compared to other types of roller shutter doors, galvanized steel roller shutter is way too much cheaper.
♦ Ventilation available. The galvanized steel slats could be perforated to offer ventilation.
♦ Many color available. The natural color, white, blue, green, cream, or any other RAL color by powder coating
♦ Easy to install
♦ Low maimaintenance

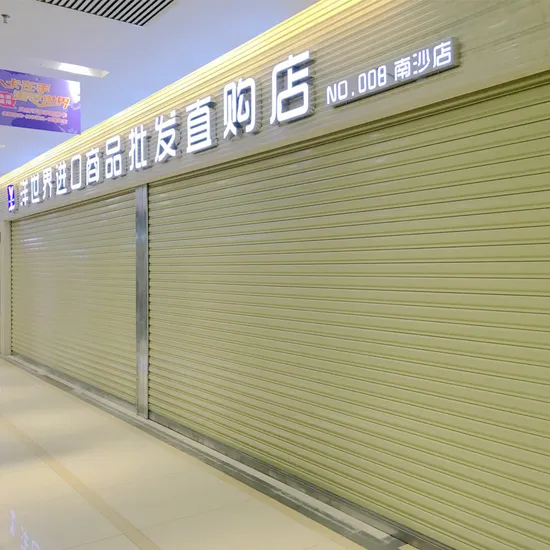

Project photo
PRODUCT DRAWING
Original color of galvanized steel
Pre-painted beige color
Powder coating to any RAL color
ROLLER SHUTTER MOTORTECHNICAL SPECIFICATIONS

Item number	Max width	Max height	Color	Operation way	Options
HG82	7,000 mm	7,000 mm	any RAL color by powder coating	manual operation, motorized operation	shutter box, safety sensor, UPS, safety brake, video surveillance

Curtain:The rolling shutter curtain itself consists of Consisted of solid interlockig galvanized steel slats, with steel
end clips on both sides of curtain to prevent lateral movement.
Thickness option: 0.6 mm, 0.8 mm, 1 mm, 1.2 mm
Bottom rail:
♦Material: rollformed galvanized steel
♦With plastic end caps on both sides
♦Dimension:40*90mm, Depth*Height
Guide rail:
♦Material: rollformed galvanized steel
♦Dimension:70*50mm, 100*60mm, Width*Depth
♦Thickness available: 1mm, 1.2mm
♦Windproof guide rails are available if needed
Shaft / Axle:
♦Material: galvanized steel
♦Diameter:5 inches(side motor), 6 inches, 8 inches, 10 inches
♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm
Mullions: Removable center mullions are available on requiest for applications were shutter opening
can not be covered by one shutter door.
Side plates / brackets
♦The brackets are manufactured from mild steel and supplied in premed finish
♦The brackets can only be installed on a structural fixing surface such as concete, steel columns, steel
angles are normally used to supported the brackets if needed
♦With plates slotted to accommodate shaft or motor mounting.
Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Automatic operation with motor(remote controls, switch button)
Optional:
♦Shutter box / hood cover
♦Perforated slats, punched slats are available if needed
♦Wicket door
Certification
FAQ
What is the delivery time?A: 20 days for the standard colors and 30 days for the customized. Also it depends on the specifications and quantity each order. Shipment time depends on the location of our customers.
What is your payment items?A: Normally we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestion, please contact with us.
Can we place one or two sets for trial?A: Yes of course, this is the better way of quality check. Also if you don't required one whole set, we have small sample in stock as well, it is free of charge, you just need to handle with the freight. It is a good way to show the sincerity for both of us.
How can I know the price exactly?A: The price is based on your specific requirements, it is better to provide as much as possible information such as color, size, quantity, market location, sales patterns, all of these would be of help us to quote the exact price.
Can I order components instead of the full set of door?A: Yes, as a factory we welcome business clients purchasing components of the door, such as panels, hardware's, motors, etc., to maximize the advantage of our mutual parties.

---
