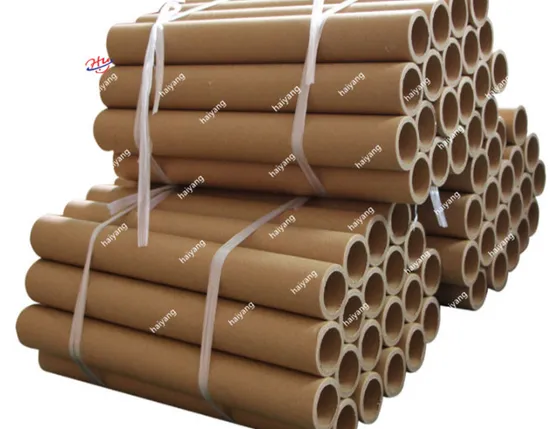

Factory recommend paper core tube machine used for making toilet roll tape roll core Features of paper tube machine
1. Cheaper price ,high popularity,high performance.
2. Adopted PLC logic control system.
3. Main motor is adopt vector type of high torque inverter for speed regulate
4. Positioning length by photoelecricity with auto speed changing function,in order to 5,meet high cutting precision.
5. Modulanzation electric layout designing for easy and science using,maintainng and repairing.
6. There is a remote controller for easy operating(to stop or slow down the machine when lacked paper).
7. Low noise driving designing.
8. Adoptd double size gluing and independent stainless steel gluing box,with imported silicone tube.
| Winding diameter | 20--200mm | Paper roll | 3-16 layers |
| Reel speed | 3-16m/min | Wall thickness | 1-8mm |
| Transmission mode | Automatic tensioning and anti off type chain transmission | Control way | Multi point operation panel |
| Winding head | 2 heads Single belt | Worker | 2 people |
| Coating method | Double side automatic glue | Winding foxed mothod | lamping type + flange type bidirectional locking |
| Cutting mothod | Single round knife synchronous automatic cutting | Definite form | Infrared precise fixed length |
| Host power | 7.5KW | Host rate | WPO 1:30 |
| Auxiliary power | 0.37KW+0.25KW | Speed control | Computer frequency conversion |
| Host size | 2600*1700*1600 | Power | 380V RSTN |
| More than and 80 feature set, any set of machine operation | On one side or two sides of any glue |
| Automatic cutting and automatic cutting | Infrared + host automatic transmission to make the length of the cut pipe more accurate (error 1-2mm) |
| Cutting automatic synchronous speed, automatic return | Digital display with head angle adjustment (optional) |
| Frequency conversion speed control than ordinary electromagnetic speed adjustable 30-60% | Can increase the electric heating drying device |
| Automatic shutdown protection (optional) | Ultra low noise.<65 DB |
| Stainless steel plastic box and press rubber poly knife, durable | Single round knife cutting, the cut is more smooth, more stable performance
|
