Manufacture of Thermal Paper Production Line

Product Description

Thermal paper coating machine manufacture
Thermal paper coating machinery Application

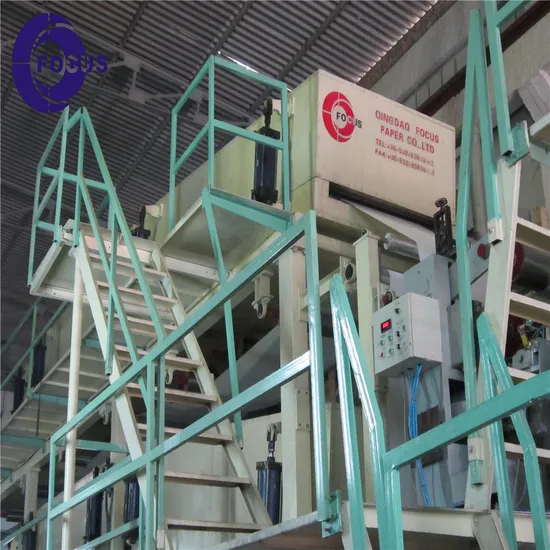

Focus brand 1400-300 Thermal paper coating production line is one of the pioneering production line in the thermal paper industry, which can achieve the two times coating at the same time. Especially suitable for Thermal paper production with the features of high speed, high efficiency of production, low energy consumption, stable performance of equipment, low consumption of base paper, and high yield.
Paper unwinding and rewinding units both adopt Automatic splicing system for paper rolls automatic change and non-stop continuous production. Which enhances the production efficiency, improves the yield, reduces the labor intensity, reduces the production cost.

Design speed:	250-350 m/min
Working speed:	200-300 m/min
Weight of base paper:	40~80 g/m2
Weight of coating:	3~10g/m2
Max width of base paper:	1069-1810mm
Max width of unwinding:	φ1200mm
Coating method:	Combined measuring rod coatin
Drying method:	Single side hot air drying
Finishing method:	Drying cylinder finishing + calender finishing

Main structure
Double working position roll-over unwinding frame (manual correction)→ Automatic splicing device→No.1 scraper coater→No.1 tension sensing roll → Pneumatic controlled hot air dry system (4mx3)→Draw roll (2 pieces)→Two roll calender→No.2 scraper coater→Pneumatic controlled hot air dry system (4mx4)→Dancing roll→Back coater→ Pneumatic controlled hot air dry system→φ1250 finishing cylinder (4 pieces)→Cold water roll (2pieces)→ No.2 tension sensing roll→Three roll calendar→Automatic splicing device→Double working position turn over rewinding frame (automatic correction)
Name: calender
Brand:FOCUS
Original: China
Increase the paper surface smoothness a lot. But don't lost the callipers.
Name: Dry oven
Brand:FOCUS
Original: China
The thickness of the dry oven body is 80mm, frame type steel welded. Inside & outside wall are all stainless steel board. Sandwiching is insulating rock wool. Air nozzle is made of stainless steel.
The drying oven can be open by air cylinder, more easy operation
Name: Chemical preparation system
Brand: FOCUS
Original: China
Including Dispersion tank, Ingredients tank,Storage tank, Head tank, material pump and motor
Name: QSC SYSTEM
Brand: FOCUS
Original: China
QCS contains one set of basis weight sensor, one set of moisture sensor, one set of scanner, one work station
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request
