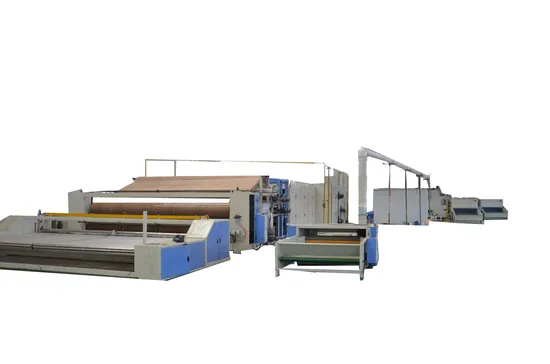

Qinyuan Polyester Low Melt Fiber Wadding Production Line machine

Product Description

Technical Data:
Model name	Power	Remark
Opening machine	13KW	Working width:1300mm
		Opening form:tacking
		Cylinder diameter:470mm(including nail plate height)
		Opening roller speed:900rpm
		Production:600kg/h
Feeding machine	4.4KW	working Width: 1370mm
		Production: 400kg/h
		Control method:photoelectric control
		Power: 4.4KW
Carding machine	10.8KW	working Width:1550MM
		Production capacity:450KG/h
		Suitable fibre:3-15D×38-76mm
		Speed:≤45m/min
Cross lapper	7.4KW	Input curtain width: ≤2500mm. output
		curtain width: ≤4600mm.
		output speed:5-20m/min
		Laying speed:≤45m/min
		Output quantitative:100-300g/m2
		Control accuracy: CV ≤ 5%
Oven	60KW	Working Width:2800
		Temperature inside the box: ≤200ºC
		working line speed:1-20m/min
Rollling machine	6KW	Line speed: 5-25m/min (adjustable)
		Longitudinal hard cutter cut,
		horizontal fly cutter cut, use cylinder
		lift

1.How long does the machine guarantee?
We guarantee one year for non-human damaged factor.

2.After service?
Engineers available to come to your factory for supplying training and installation.

3.How to control the quality?
We have professional Engineer and inspector make sure that each part of machine working well before shipment.

4.How to contact you?
You could contact us via TM, Skype, Whatsapp, Wechat, QQ, Email

5.What about payment term?
T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc..

6.Are you a manufacturer or Trade company?
We are a professional manufacturer holding our own International Trade Department,for that we can better understand customer's needs and offer a reasonable price.

---
