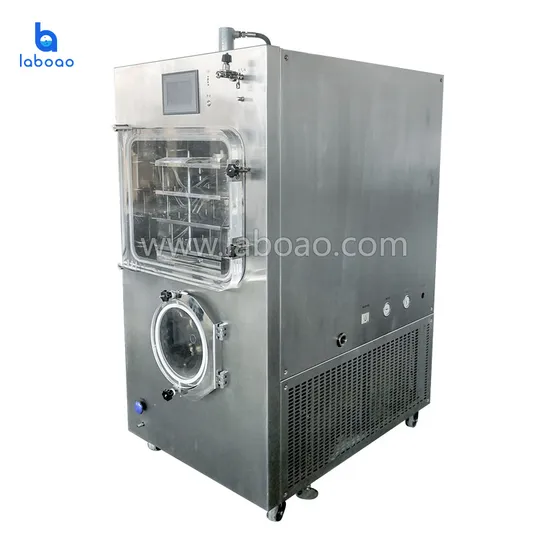

Made in China All Stainless Steel Laboratory Vacuum Freeze Dryer

Product Description

Made In China All Stainless Steel Laboratory Vacuum Freeze Dryer
Vacuum freeze dryers are widely used in the fields of medicine, pharmaceuticals, biological research, chemicals and food. The lyophilized articles are easy to store for a long time, and can be restored to the state before lyophilization and maintain the original biochemical characteristics after adding water.
LFD-50FS (silicone oil heating) freeze dryer, lyophilized in situ (patented product). It changes the cumbersome operation of the past drying process, prevents material contamination, and automates the drying and sublimation. This model has shelf heating and programmable functions to remember the freeze-drying curve, allowing users to observe the lyophilization process of the material.
Feature: 1. The company's patented product square warehouse in-situ vacuum freeze dryer, pre-freezing, drying in-situ, easy to operate, good drying effect.
2. The drying chamber door is made of ACRYLIC material, which is colorless, transparent and observable for lyophilization.
3. Inflatable (discharge) valve adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the material.
4. Patented gas guiding technology, the ice trap is evenly trapped and the ice trapping ability is strong.
5. Internationally renowned brand compressors, dual-machine cascade refrigeration, high efficiency, energy saving, long service life and low noise.
6. The patented technology of the separator and the fuzzy control technology of the separator temperature, the shelf temperature difference is small, the temperature control precision is high, and the drying effect is uniform.
7. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.
8. Powerful sensor calibration to ensure accurate measurement of long-term use.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control precision, stable and reliable performance.
10. Professionally designed FD-PILOT control system can save hundreds of process recipes, each group contains 50 temperature control sections to improve process optimization rate.
11. Intelligent data recording system, real-time recording and display of cold trap temperature curve, sample temperature curve, vacuum degree curve, export data can be browsed and printed by computer and various operations to facilitate process optimization and drying effect verification.
12. Flexible manual + automatic control mode, manually used for groping process, automatically used for batch production.
13. Real-time alarm display and historical alarm query function for fault diagnosis and equipment maintenance.
14. Adjust the vacuum during the drying process to avoid foaming and blowing of special materials and improve drying efficiency.
15. User level and password can be set and decentralized for operation management.
Specification:

Model	LFD-50FS
Freeze-dried area	0.5m2
Material plate size	405 × 405mm
Number of material trays	3
Shelf size	410 × 410mm
Number of shelves	3+1 floors
Shelf spacing	70mm
Shelf temperature range	-55 ° C ~ +70 ° C
Shelf temperature difference	±1 °C (balanced)
Cold trap temperature	≤ -75 ° C (no load)
Water catching capacity	≥10KG/24h
Pumping rate	8L/S
Ultimate vacuum	≤5pa (no load)
Installed power	6500w
Host weight	800kg
Mainframe dimensions	1720 × 950 × 1760 + 240mm
Cooling method	air cooling
Plate loading material	5L (material thickness 10mm)
Xilin bottle capacity
Vial bottle Ф 12mm	3705
Vial bottle Ф 16mm	2058
Vial bottle Ф 22mm	1050

---
