CNC Hydraulic Gate Shearing Machine Guillotine Shear Tool

Product Description

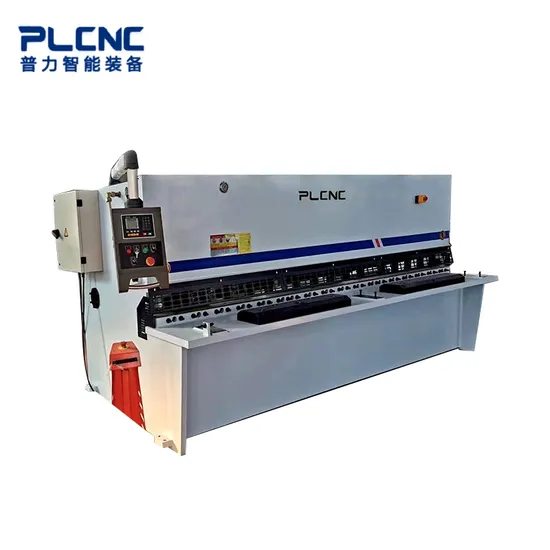

Hydraulic gate shearing machine
Steel welded structure, with comprehensive treatment (vibration aging, heat treatment) to eliminate internal stress, has good rigidity and stability; QC12K adopts an integrated hydraulic system with good reliability; Eliminate rail gaps and improve cutting quality; Mobile rear gear, manual adjustment, digital display.
Product Parameters

Specification and model	Scissorable board thickness(mm)	Scissorable board width(mm)	Stroke times	Rear material travel(mm)	shear angle(°)	Workbench height(mm)	power(kw)
			(time/min)
QC11Y 6×2500	6	2500	16~35	20~600	30′-1°30′	800	7.5
QC11Y 6×3200	6	3200	14~35	20~600	30′-1°30′	800	7.5
QC11Y 6×4000	6	4000	10~30	20~600	30′-1°30′	800	7.5
QC11Y 6×5000	6	5000	10~30	20~800	30′-1°30′	900	11
QC11Y 6×6000	6	6000	8~5	20~800	30′-1°30′	1000	11
QC11Y 8×2500	8	2500	14~30	20~600	30′-2°	800	11
QC11Y 8×3200	8	3200	12~30	20~600	30′-2°	850	11
QC11Y 8×4000	8	4000	10~25	20~600	30′-2°	900	11
QC11Y 8×5000	8	5000	10~25	20~800	30′-2°	1000	15
QC11Y 8×6000	8	6000	8~20	20~800	30′-2°	1050	15
QC11Y 12×2500	12	2500	12~25	20~800	30′-2°	840	15
QC11Y 12×3200	12	3200	12~25	20~800	30′-2°	900	15
QC11Y 12×4000	12	4000	8~20	20~800	30′-2°	940	15
QC11Y 12×5000	12	5000	8~20	20~1000	30′-2°	1000	22
QC11Y 12×6000	12	6000	6~20	20~1000	30′-2°	1060	30
QC11Y 16×2500	16	2500	12~20	20~800	30′-1°30′	840	22
QC11Y 16×3200	16	3200	12~20	20~800	30′-1°30′	900	22
QC11Y 16×4000	16	4000	8~15	20~800	30′-1°30′	940	22
QC11Y 16×5000	16	5000	8~15	20~1000	30′-1°30′	1000	30
QC11Y 16×6000	16	6000	6~15	20~1000	30′-1°30′	1100	37
QC11Y 20×2500	20	2500	10~20	20~800	30′-3°	900	30
QC11Y 20×3200	20	3200	10~20	20~800	30′-3°	950	30

Our Workshop

Performance characteristics

All steel welded structure, with comprehensive treatment (vibration aging, heat treatment) to eliminate internal stress, has good rigidity and stability;
QC12K adopts an integrated hydraulic system with good reliability;
Eliminate rail gaps and improve cutting quality; Mobile rear gear, manual adjustment, digital display;
The blade clearance can be adjusted by a handwheel, which is fast, accurate, and convenient.
Rectangular blade, all four edges can be used, with a long service life. Adjustable cutting angle to reduce sheet metal distortion and deformation;
The upper knife holder adopts an inward tilting structure, which is convenient for material dropping and can improve the accuracy of work;
It has segmented cutting function; Equipped with lighting and illumination device functions;
Rear feeding device (optional configuration); Product Description

Spare parts lists

Name			Type
Blade	Material		6CrW2Si forging
	Manufacture		Shanghai heli blade/renaser
Motor	Type		Y type
	Manufacture		Nantong tongde
Electric system	Self choose	Type	E21S
		Manufacture	Estun
	Main electrical elements		SIEMENS
Hydraulic system	pump	type	Gear pump
		Manufacture	Oulide/wote
	valve	Manufacture	nantong
	Cylinder	Piston rod	Forgings, heat treatment HRC48-50
		Manufacture	Jianhu huaxing
		sealing	American pike/Japanese walka
Back gauge	Screw(optional)		Taiwan HIWIN precision ball screw
	Guide rod		Double guider rod
	baffle		Square pipe welding of whole steel plate

---
