| US$2,200.00-2,300.00 | 1 Piece (MOQ) |
| Optical System | Infinity color corrected optical system |
| Eyepiece | High eyepoint plan PL10x/22mm |
| Filed | Bright field Optional (Oblique, Polarizing, DIC, Transmit Light) |
| Infinity Plan Achromatic Objective | Long working distance infinity plan metallurgical DIC achromatic LMPL5X/0.15 WD10.8mm LMPL10X/0.3 WD10mm LMPL20X/0.45 WD4mm LMPL50X/0.55 WD7.9mm LMPL100X/0.80 WD2.1mm |
| Head | 30 degree inclined trinocular, spilitting ration 100:0 or 50:50 |
| Focus System | Coaxial coarse & fine focusing, coarse focus range 33mm, fine focusing precision 0.001mm, with coarse adjustment stop and tightness adjustment |
| Nosepirce | Intilted, Quintuple, with DIC Slot |
| Working stage | 4'' Double layer mechanical stage, platform area 230*215mm, moving range 105*105mm, with glass flat stage, right hand position, XY moving hand wheel, with stage adaptor. |
| Illumination | Reflect illumination, with Iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with oblique illumination switch. Single high power 5W led, white, brightness adjustable. Trnasmiteed illumination, single high power 5W LED, white brightness adjustable, N.A. 0.5 condenser with Iris Diaphragm. |
| Filter | 360 degree rotatable analyser flashboard Refleted light illumination |

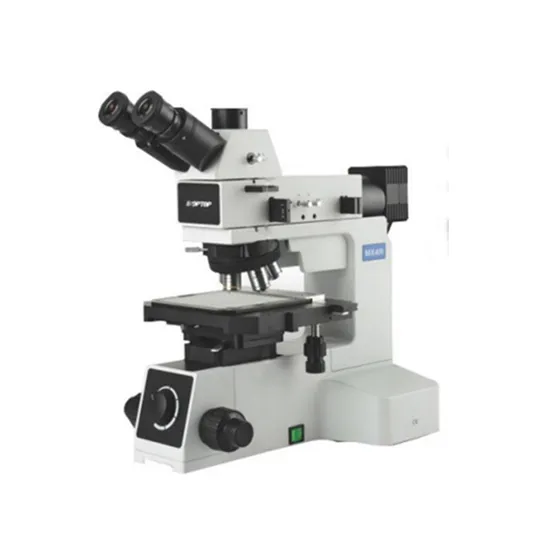

| Model | HST402-B |
